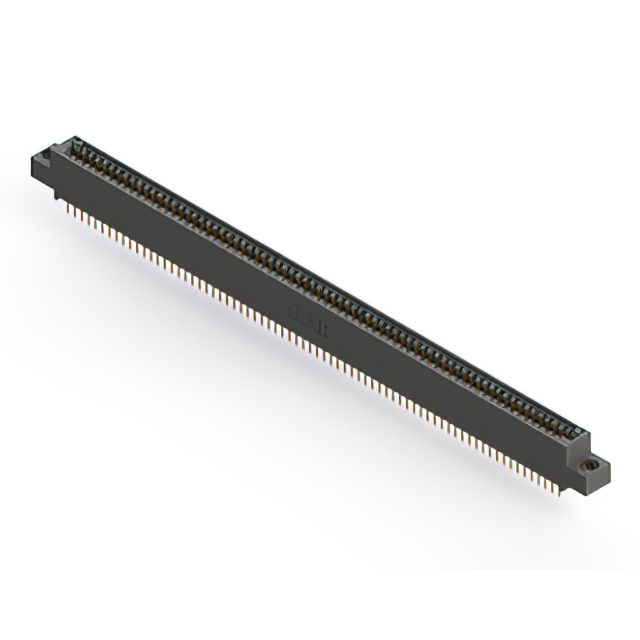

895-144-524-507

Active

EDAC Inc.

CONN EDGE DUAL FML 144POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-144-524-507

Active

EDAC Inc.

CONN EDGE DUAL FML 144POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-144-524-507

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	144
Number of Positions/Bay/Row [custom]	72
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-144 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Termination	Mounting Type	Card Type	Termination Rows	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Read Out	Number of Rows	Color	Number of Positions/Bay/Row [custom]	Contact Finish	Gender	Contact Material	Material - Insulation	Features	Flange Feature	Flange Feature
EDAC Inc. 895-144-559-803	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole Right Angle	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-555-808		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Board Edge Straddle Mount	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)	Card Extender
EDAC Inc. 895-144-524-507		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-524-808		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-540-802				10 Áin	0.25 Ám	2.54 mm	0.1 in	Wire Wrap	Through Hole	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)		3.25 mm	0.128 in
EDAC Inc. 895-144-520-804	3.96 mm	Top Mount Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-559-212	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole Right Angle	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-559-202	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole Right Angle	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-559-804	3.96 mm	Top Mount Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole Right Angle	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-144-525-807		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Through Hole	Non Specified - Dual Edge	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	144	Dual	2	Black	72	Gold	Female	Copper Alloy	Polyphenylene Sulfide (PPS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 128.17
Newark	Each	1	$ 153.82
		100	$ 97.91
		250	$ 84.27
		500	$ 72.55
		1000	$ 57.50

Description

General part information

895-144 Series

144 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
