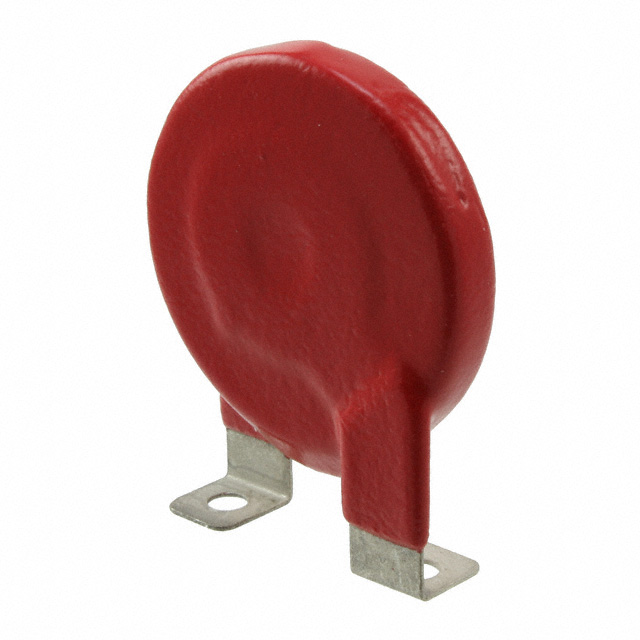

V751HA40 - HA40

V751HA40

Active
Littelfuse/Commercial Vehicle Products

METAL-OXIDE VARISTOR (MOV),750V V(RMS),40KA I(TM),RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

V751HA40 - HA40

V751HA40

Active
Littelfuse/Commercial Vehicle Products

METAL-OXIDE VARISTOR (MOV),750V V(RMS),40KA I(TM),RADIAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

SpecificationV751HA40
Capacitance @ Frequency1800 pF
Current - Surge40 kA
Energy1050 J
Maximum AC Volts [Max]750 V
Mounting TypeBolt Mount
Number of Circuits1
Operating Temperature [Max]85 C
Operating Temperature [Min]-55 C
Package / CaseDisc, Formed Tabs
Package / Case40 mm
Varistor Voltage (Max) [Max]1.32 kV
Varistor Voltage (Min) [Min]1.08 kV
Varistor Voltage (Typ)1.2 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 180$ 19.05
NewarkEach 100$ 16.75
250$ 16.26

Description

General part information

V751HA40 Series

HA Series transient surge suppressors are industrial hgh energy metal-oxide varistors (MOVs). They are designed to provide secondary surge protection in the outdoor and servie entrance environment (distribution panels) of buildings, and also in industrial applications for motor controls and power supplies used in the oil-drilling, mining, and transportation fields. The design of the HA Series of metal oxide varistors provide rigid terminals for screw mounting. Also available in a clipped lead version for through hole board placement or to accommodate soldered leads-designation "HC".
