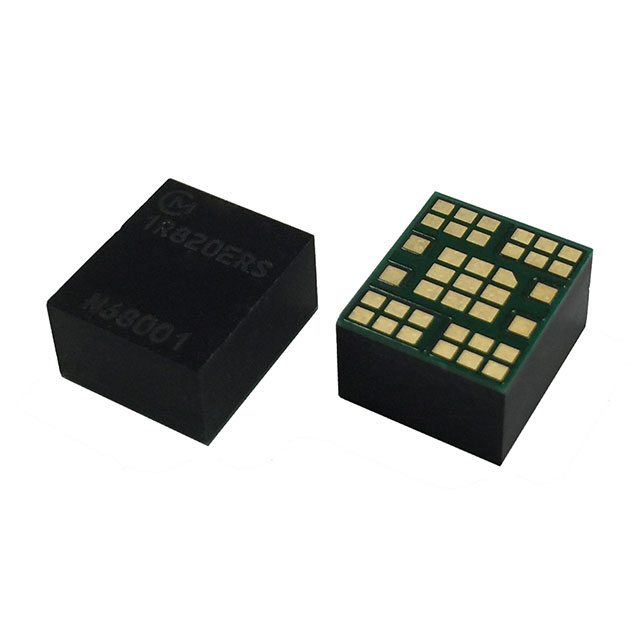

MYMGK1R820ERSR

Active

Murata Power Solutions Inc.

DC/DC POL CONVERTER, ADJUSTABLE, MINIATURE MONO BLOCK, 8V TO 14V, 30W, 0.7V TO 5V, 6A

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC/DC POL CONVERTER, ADJUSTABLE, MINIATURE MONO BLOCK, 8V TO 14V, 30W, 0.7V TO 5V, 6A

Technical Specifications

Parameters and characteristics for this part

Power Management IC Development Tools 12A 8-15VIN 0.7-1.8VOUT

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Power (Watts)	Package / Case	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Type	Supplier Device Package	Control Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Power - Output	Supplied Contents	Voltage - Output	Regulator Topology	Main Purpose	Utilized IC / Part	Outputs and Type	Outputs and Type	Frequency - Switching	Current - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]
Murata Power Solutions Inc. MYMGK1R804FRSR	0.7 V	1.8 V	7.2 W	23-SMD Module	93 %	ITE (Commercial)	85 °C	-40 °C	7.5 mm	0.3 "	5 mm	0.2 "	9 mm	0.35 in	Surface Mount	1	4.5 V	Non-Isolated PoL Module	Module	Active High Enable	4 A	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. MYMGK1R820ERSR	0.7 V	1.8 V		37-SMD Module	89.2 %	ITE (Commercial)	85 °C	-40 °C		0.35 "		0.22 in	10.5 mm	0.41 "	Surface Mount	1	8 V	Non-Isolated PoL Module	Module	Active High Enable	20 A	14 V	OCP OVP Remote On/Off SCP UVLO	5.6 mm	9 mm
Murata Power Solutions Inc. MYMGK1R812FRSR-EVM																										21.6 W	Board(s)	0.7 V 1.8 V	Buck	DC/DC Step Down	MYMGK1R812FRSR	Non-Isolated	1	500 kHz	12 A	Fully Populated	8 VDC	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Management IC Development Tools 12A 8-15VIN 0.7-1.8VOUT

Technical documentation and resources
