1430-16-1-0500-006-1-TS

Active

CnC Tech, LLC

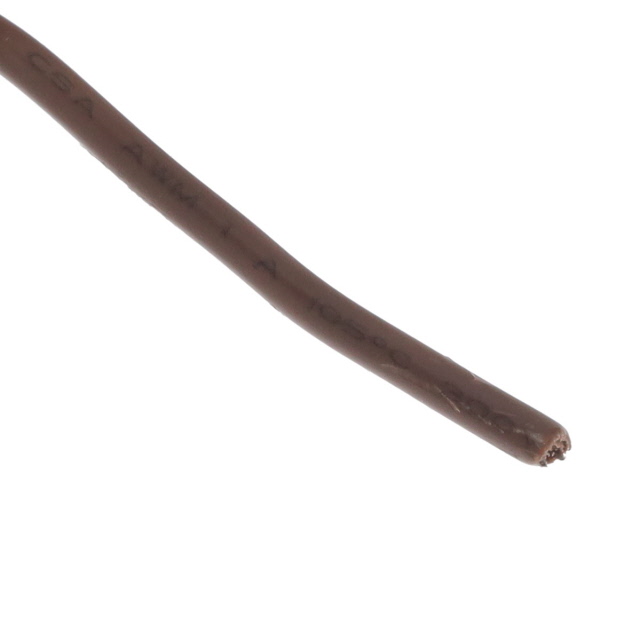

HOOK-UP STRND 16AWG BROWN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1430-16-1-0500-006-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 16AWG BROWN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1430-16-1-0500-006-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26
Conductor Strand [diameter]	0.01 in
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.095 in
Jacket (Insulation) Diameter [diameter]	2.41 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	Brown
Length [x]	30.5 m, 7.62 m, 152.4 m
Length [x]	100 ft, 25 ft, 500 '
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 1430
Voltage	300 V
Wire Gauge	16 AWG

1430-16 Series

Part	Length [x]	Length [x]	Wire Gauge	Length	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Ratings	Features	Cable Type	Length	Operating Temperature [Max]	Operating Temperature [Min]
CnC Tech, LLC 1430-16-1-0500-005-1-TS	50 ft 500 '	152.4 m	16 AWG	15.24 m 76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Blue	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-011-1-TS	25 ft 50 ft 100 ft	7.62 m 30.5 m	16 AWG	15.24 m 76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Green Yellow	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-002-1-TS	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG	15.24 m 76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	White	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-006-1-TS	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG		Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Brown	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up		105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-007-1-TS	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG	15.24 m 76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Green	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-001-1-TS	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG	15.24 m 76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Black	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-010-1-TS	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG	76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Violet	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C
CnC Tech, LLC 1430-16-1-0500-003-1-TS	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	16 AWG	76.2 m	Copper Tinned	300 V	26	0.01 in	0.095 in	2.41 mm	Yellow	0.016 in	0.41 mm	Poly-Vinyl Chloride (XLPVC) Irradiated	UL Style 1430	Oil Resistant	Hook-Up	3000 "	105 ░C	-10 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 12.56
		1	$ 41.03
		2	$ 11.96
		3	$ 38.40
		4	$ 11.40
		5	$ 36.64
		10	$ 10.67
		10	$ 34.89
		20	$ 10.19
		25	$ 32.69
		40	$ 9.70
		50	$ 30.94
		100	$ 29.62
		100	$ 9.09
		200	$ 8.60
		400	$ 8.23
		500	$ 0.41
		1000	$ 0.39
		2500	$ 0.37
		5000	$ 0.35
		12500	$ 0.33
		25000	$ 0.32

Description

General part information

1430-16 Series

16 AWG Hook-Up Wire 26/0.0100" Brown 300V 500.0' (152.4m)

Documents

Technical documentation and resources
