3240598

Obsolete

Phoenix Contact

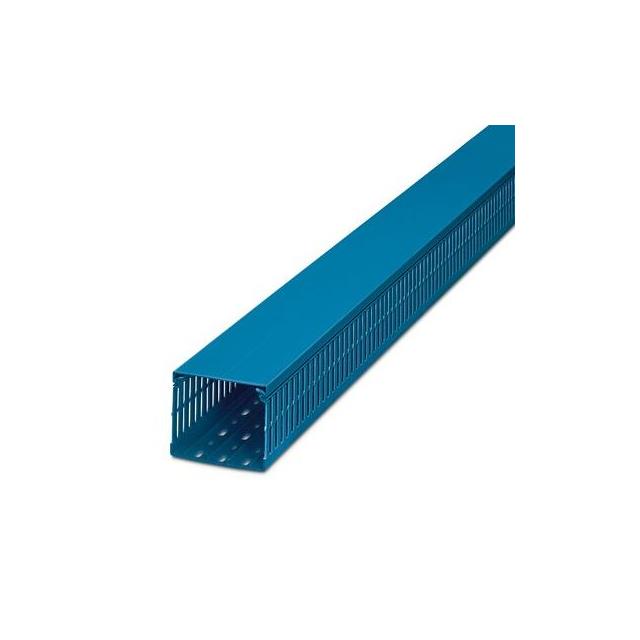

WIRE DUCT SOLID 2PC RIVET 6.56'

Search across all available documentation for this part.

Obsolete

Phoenix Contact

WIRE DUCT SOLID 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	3240598

Color	Blue
Features	Separate Snap in Lid (Included)
Height [z]	25 mm
Height [z]	0.984 in
Length [x]	2 m
Length [x]	6.56 ft
Material	PC/ABS, Halogen Free
Mounting Type	Rivet
Width	80 mm
Width [x]	3.15 in
Wire Duct Type	2 Piece
Wire Duct Type	Solid (Raceway)

Part	Color	Features	Mounting Type	Height [z]	Height [z]	Material	Wire Duct Type	Wire Duct Type	Length [x]	Length [x]	Width	Width [x]
Phoenix Contact 3240598	Blue	Separate Snap in Lid (Included)	Rivet	25 mm	0.984 in	PC/ABS Halogen Free	2 Piece	Solid (Raceway)	2 m	6.56 ft	80 mm	3.15 in
Phoenix Contact 3240599	Blue	Separate Snap in Lid (Included)	Rivet	40 mm	1.575 in	PC/ABS Halogen Free	2 Piece	Solid (Raceway)	2 m	6.56 ft	80 mm	3.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Duct Blue Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)

Technical documentation and resources
