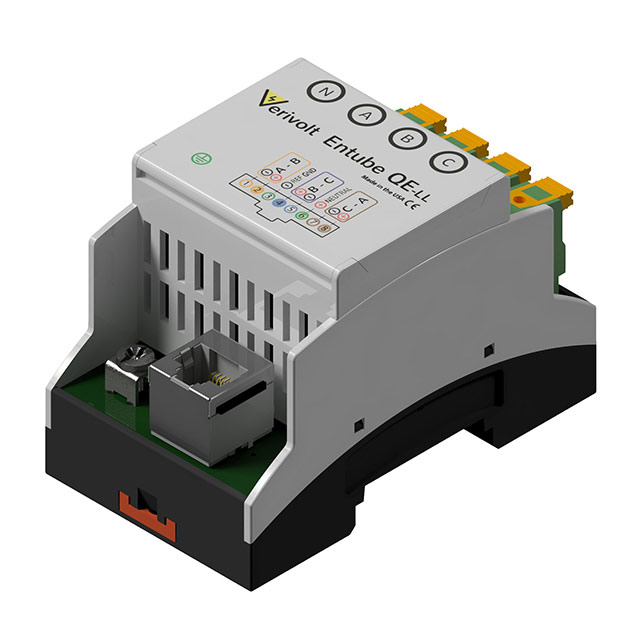

ENTUBE QE (500V 10V L-N)

Active

Verivolt LLC

TRANSDUCER VOLTAGE DIVIDER 3PH

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER VOLTAGE DIVIDER 3PH

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Input Range [Max]	Input Range [Min]	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Accuracy	Output	Input Range
Verivolt LLC ENTUBE QE (250VAC 7VAC L-L)	RJ45 Spring Terminal	250 VAC	0 VAC	DIN Rail	Voltage Transducer	70 °C	-25 °C	7 VAC	0 VAC	0.2 %
Verivolt LLC ENTUBE QE (1500V 5V L-N)	RJ45 Spring Terminal			DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V	1500 V
Verivolt LLC ENTUBE QE (1500V 5V L-L)	RJ45 Spring Terminal			DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V	1500 V
Verivolt LLC ENTUBE QE (1000V 5V L-N)	RJ45 Spring Terminal	1000 V	-1000 V	DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V
Verivolt LLC ENTUBE QE (500V 10V L-N)	RJ45 Spring Terminal	500 V	-500 V	DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	10 V
Verivolt LLC ENTUBE QE (300V 10V L-N)	RJ45 Spring Terminal			DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	10 V	300 V
Verivolt LLC ENTUBE QE (750V 5V L-N)	RJ45 Spring Terminal			DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V	750 V
Verivolt LLC ENTUBE QE (500V 5V L-N)	RJ45 Spring Terminal	500 V	-500 V	DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V
Verivolt LLC ENTUBE QE (1000V 10V L-N)	RJ45 Spring Terminal	1000 V	-1000 V	DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	10 V
Verivolt LLC ENTUBE QE (50V 5V L-N)	RJ45 Spring Terminal			DIN Rail	Voltage Transducer	70 °C	-25 °C			0.2 %	5 V	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 503.70

General part information

Voltage Transducer ±500V Input ±10V Output DIN Rail
