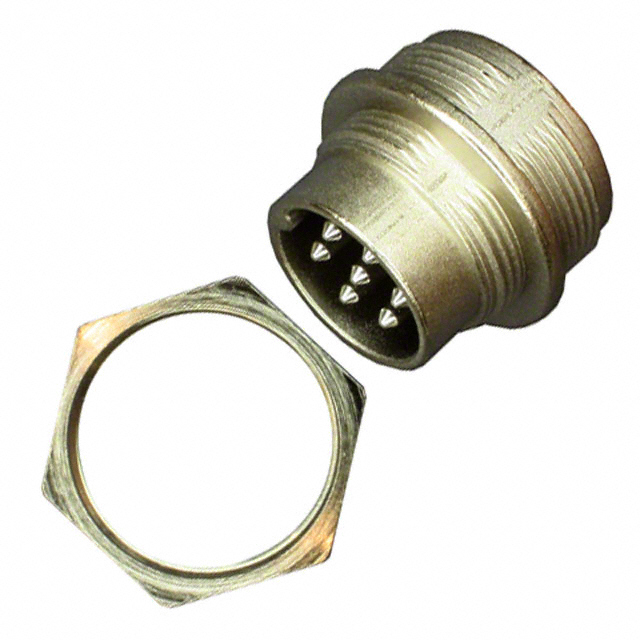

T 3477 009
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 7P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T 3477 009
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 7P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3477 009 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Ingress Protection | IP40 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 7 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-7 |
| Shielding | Shielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.50 | |
| 10 | $ 10.35 | |||
| 25 | $ 9.75 | |||
| 50 | $ 9.50 | |||
| 100 | $ 9.25 | |||
| 300 | $ 8.25 | |||
| 500 | $ 7.75 | |||
| 1000 | $ 6.85 | |||
Description
General part information
T 3477 Series
7 Position Circular Connector Receptacle, Male Pins Solder Cup
