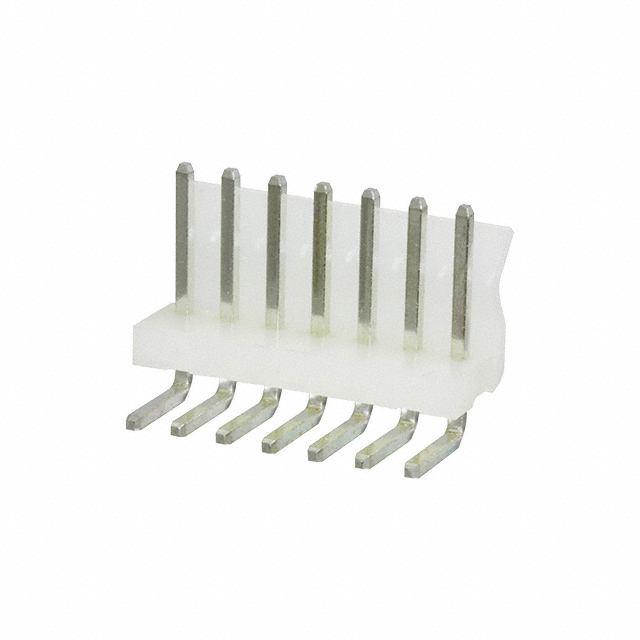

LHB-07-SB1

Active

Adam Tech

CONN HEADER R/A 7POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 7POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-07-SB1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.445 in
Contact Length - Mating	11.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Material Flammability Rating	Contact Finish - Post	Style	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Termination	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Contact Material	Contact Shape	Fastening Type	Number of Positions	Shrouding	Voltage Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech LHB-07-SB1	5 A	0.134 in	3.4 mm	White	UL94 V-2	Tin	Board to Cable/Wire	All	0.445 in	11.3 mm	Solder	Header	Through Hole Right Angle	0.156 in	3.96 mm	Male Pin	1	Brass	Square	Friction Lock	7	Shrouded - 1 Wall	250 VAC	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C
