C1108.41.01

Active

Prysmian Group

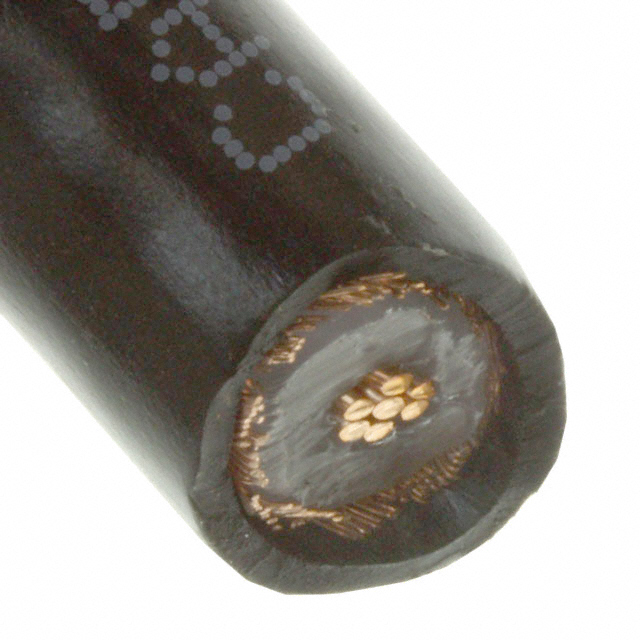

CABLE COAX MINI RG8 16AWG

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAX MINI RG8 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	C1108.41.01

Cable Group	RG-8 Mini
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand [custom]	28 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	3.94 mm
Dielectric Diameter [diameter]	0.155 "
Impedance	50 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	RF Signal
VoP, Velocity of Propagation	80
Wire Gauge	1.33 mm²
Wire Gauge	16 AWG

Part	Conductor Material	Shield Material	Jacket (Insulation) Material	Wire Gauge	Wire Gauge	Cable Type	Cable Group	VoP, Velocity of Propagation	Jacket Color	Shield Coverage	Shield Type	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Impedance	Conductor Strand [custom]	Conductor Strand [custom]
Prysmian Group C1108A.18.01	Copper Bare	Copper Bare	Poly-Vinyl Chloride (PVC)	1.33 mm²	16 AWG	Coaxial	RG-8 Mini	80	Black	95 %	Braid	RF Signal	3.94 mm	0.155 "	152.4 m	6000 in	50 Ohms	28 AWG	19 Strands
Prysmian Group C1108.41.01	Copper Bare	Copper Bare	Poly-Vinyl Chloride (PVC)	1.33 mm²	16 AWG	Coaxial	RG-8 Mini	80	Black	95 %	Braid	RF Signal	3.94 mm	0.155 "	304.8 m	1000 ft	50 Ohms	28 AWG	19 Strands

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.59

General part information

Coaxial Cable 16 AWG (1.33mm²) RG-8 Mini 1000.0' (304.80m) 50 Ohms
