H3161-46
ActiveHarwin Inc.

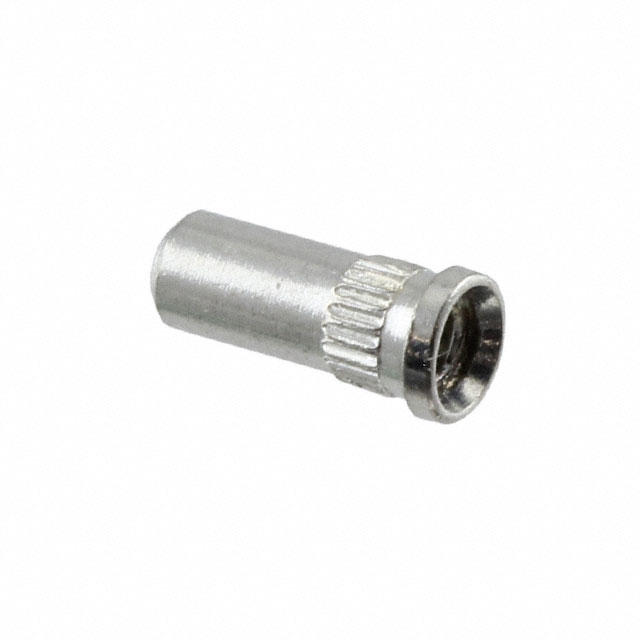

1MM PC BOARD SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
H3161-46
ActiveHarwin Inc.
1MM PC BOARD SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3161-46 |
|---|---|
| Accepts Pin Diameter [Max] | 1.05 mm |
| Accepts Pin Diameter [Max] | 0.041 " |
| Accepts Pin Diameter [Min] | 0.035 " |
| Accepts Pin Diameter [Min] | 0.89 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.092 in |
| Flange Diameter [diameter] | 2.34 mm |
| Insertion Force [Max] | 9 N |
| Insertion Force [Min] | 3 N |
| Length - Overall | 0.207 in |
| Length - Overall | 5.26 mm |
| Mounting Hole Diameter [Max] | 1.96 mm, 0.077 " |
| Mounting Hole Diameter [Min] | 1.91 mm, 0.075 " |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 0.14 in |
| Socket Depth | 3.56 mm |
| Tail Type | No Tail |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| 3000 | $ 0.16 | |||
Description
General part information
H3161 Series
Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit, Knurled
