5380-4PG-318

Active

Conxall/Switchcraft

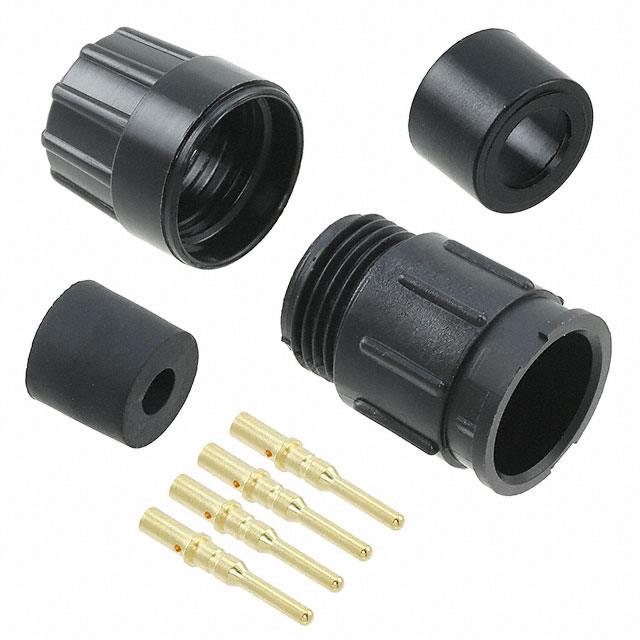

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5380-4PG-318

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5380-4PG-318

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

5380-4PG Series

Part	Primary Material	Backshell Material, Plating	Contact Material	Termination	Mounting Type	Number of Positions	Features	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Connector Type	Voltage Rating	Ingress Protection	Contact Finish - Mating	Color	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5380-4PG-528	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell Cable Clamp	Bayonet Lock	7.37 mm	7.11 mm	0.29 in	0.28 in	Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded
Conxall/Switchcraft 5380-4PG-330	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell	Bayonet Lock		7.62 mm	0.32 in	0.3 in	Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded	8.13 mm
Conxall/Switchcraft 5380-4PG-324	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell	Bayonet Lock	6.86 mm	6.1 mm	0.27 in	0.24 in	Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded
Conxall/Switchcraft 5380-4PG-318	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell	Bayonet Lock					Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5380-4PG-518	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell Cable Clamp	Bayonet Lock					Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5380-4PG-530	Plastic	Nylon Polyamide (PA)	Brass	Crimp	Free Hanging (In-Line)	4	Backshell Cable Clamp	Bayonet Lock		7.62 mm	0.32 in	0.3 in	Male Pins Receptacle	600 V	Weathertight	Gold	Black	Keyed	-40 °C	115 °C	Unshielded	8.13 mm
