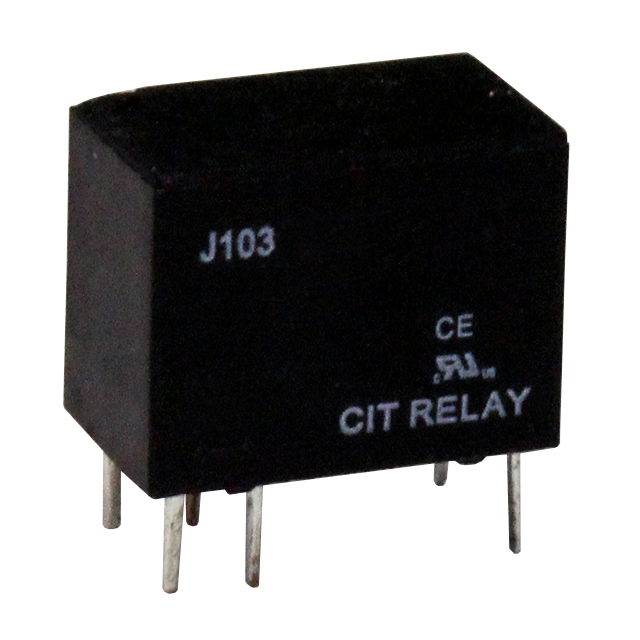

J1031C3VDC.15S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE SPDT 2A 3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J1031C3VDC.15S

Active

CIT Relay and Switch

RELAY GENERAL PURPOSE SPDT 2A 3V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J1031C3VDC.15S

Coil Current	50 mA
Coil Resistance	60 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	120 W, 250 VA
Mounting Type	Through Hole
Must Operate Voltage	2.25 VDC
Must Release Voltage	0.3 VDC
Operate Time	4.5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	1.5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	125 VAC, 60 VDC
Termination Style	PC Pin

J1031C Series

Part	Coil Resistance	Contact Form	Termination Style	Release Time	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Seal Rating	Must Release Voltage	Load - Max Switching	Mounting Type	Must Operate Voltage	Coil Voltage	Switching Voltage [Max]	Coil Type	Contact Material	Contact Rating (Current)	Coil Current
CIT Relay and Switch J1031C24VDC.15S	3.84 kOhms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	2.4 VDC	120 W 250 VA	Through Hole	18 VDC	24 VDC	60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	6.3 mA
CIT Relay and Switch J1031C24VDC.20S	2.88 kOhms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	2.4 VDC	120 W 250 VA	Through Hole	18 VDC	24 VDC	60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	8.3 mA
CIT Relay and Switch J1031C9VDC.15S		SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	0.9 VDC	120 W 250 VA	Through Hole	6.75 VDC	9 VDC	60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	16.7 mA
CIT Relay and Switch J1031C6VDC.20S	180 Ohms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	0.6 VDC	120 W 250 VA	Through Hole	4.5 VDC		60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	33.3 mA
CIT Relay and Switch J1031C12VDC.15S	960 Ohms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	1.2 VDC	120 W 250 VA	Through Hole	9 VDC	12 VDC	60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A
CIT Relay and Switch J1031C3VDC.15S	60 Ohms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	0.3 VDC	120 W 250 VA	Through Hole	2.25 VDC		60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	50 mA
CIT Relay and Switch J1031C6VDC.15S	240 Ohms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	0.6 VDC	120 W 250 VA	Through Hole	4.5 VDC		60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A
CIT Relay and Switch J1031C9VDC.20S	405 Ohms	SPDT (1 Form C)	PC Pin	1.5 ms	General Purpose	85 °C	-40 °C	4.5 ms	Sealed - Fully	0.9 VDC	120 W 250 VA	Through Hole	6.75 VDC	9 VDC	60 VDC 125 VAC	Non Latching	Gold (Au) Silver (Ag)	2 A	22.2 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.28
		10	$ 1.20
		25	$ 1.07
		50	$ 1.02
		100	$ 0.96
		250	$ 0.86
		500	$ 0.80
		1000	$ 0.75
		5000	$ 0.72

Description

General part information

J1031C Series

General Purpose Relay SPDT (1 Form C) Through Hole
