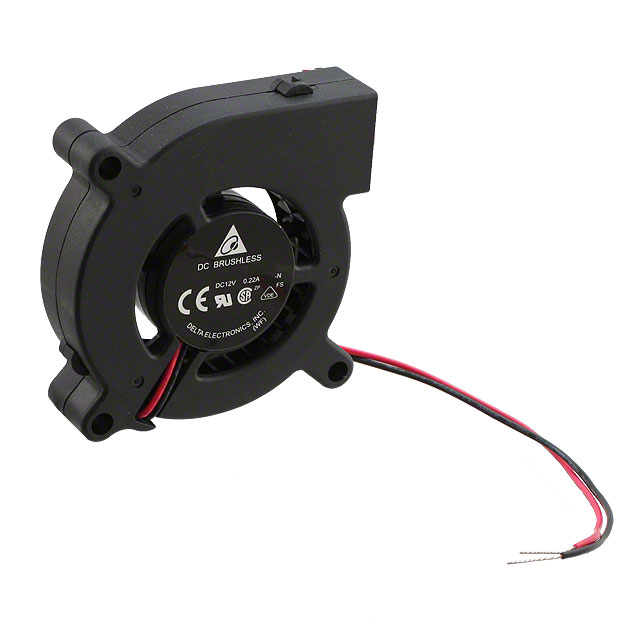

BFB0612HB-N

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 12V 7V TO 13.8V 4.67CFM 37DB 60 X 60 X 15.4MM

Search across all available documentation for this part.

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 12V 7V TO 13.8V 4.67CFM 37DB 60 X 60 X 15.4MM

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Termination	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Noise	Voltage Range [Min]	Voltage Range [Max]	RPM	Weight	Weight	Approval Agency	Power (Watts)	Current Rating (Amps)	Lifetime @ Temp.	Air Flow	Air Flow	Static Pressure	Static Pressure	Material - Frame	Width [y]	Features	Width [x]
Delta Electronics BFB0612H	Plastic	2 Wire Leads	12 VDC	90 °C	-10 °C	-10 °C	90 °C	Square/Rounded	60 mm	60 mm	Blower	Ball	30 dB(A)	5 VDC	13.8 VDC	3200 RPM	51.26 g	0.113 lb	CE CSA UL VDE	2.16 W	0.18 A	50000 Hrs	0.188 mł/min	6.7 CFM	0.428 in H2O	106.6 Pa	Plastic	25 mm
Delta Electronics BFB0612HB-F00	Plastic	3 Wire Leads	12 VDC					Square/Rounded	60 mm	60 mm	Blower	Ball	37 dB	5.5 VDC	13.8 VDC	4800 RPM	45.81 g	0.101 lb	CE CSA UL VDE	2.16 W	0.18 A		0.132 mł/min	4.7 CFM	0.651 in H2O	162.2 Pa	Plastic		Speed Sensor (Tach)	15.4 mm
Delta Electronics BFB0612HB-N	Plastic	2 Wire Leads	12 VDC	90 °C	-10 °C	-10 °C	90 °C	Square/Rounded	60 mm	60 mm	Blower	Ball	37 dB	7 V	13.8 VDC	4800 RPM	45.81 g	0.101 lb	CE CSA UL VDE	2.16 W	0.18 A	50000 Hrs	0.132 mł/min	4.7 CFM	0.651 in H2O	162.2 Pa	Plastic			15.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Square/Rounded - 60mm L x 60mm H Ball 4.7 CFM (0.132m³/min) 2 Wire Leads
