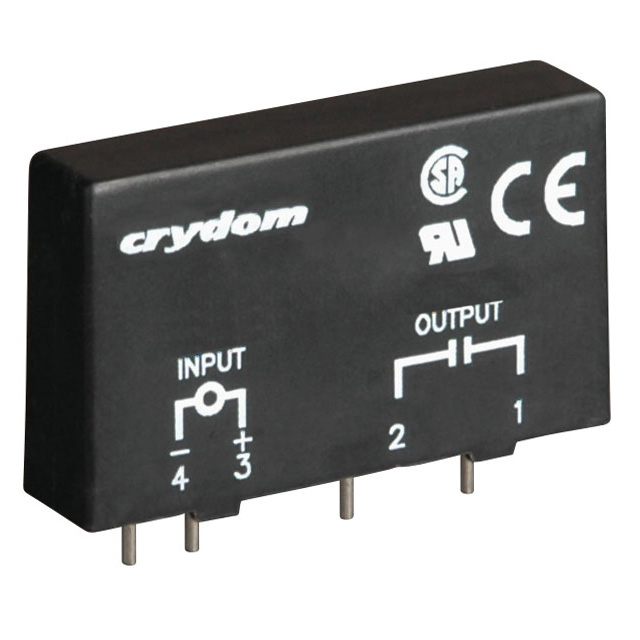

M-OAC5AR
ObsoleteSensata-Crydom
AC OUTPUT MODULE 3.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
M-OAC5AR
ObsoleteSensata-Crydom
AC OUTPUT MODULE 3.5A
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | M-OAC5AR |
|---|---|
| Color | Black |
| Current - Input | 20 mA |
| Current - Output | 3.5 A |
| Style | Mini |
| Turn Off Time | 8.33 ms |
| Turn On Time | 0.1 ms |
| Type | AC Output Module |
| Voltage - Input | 5 VDC |
| Voltage - Output [Max] | 280 VAC |
| Voltage - Output [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M-OA Series
AC Output Module Output Module 3.5A 24 ~ 280VAC Output 5VDC Supply
Documents
Technical documentation and resources
