0039000428-05-G4

Active

Molex

5" PRE-CRIMP A2015 GREEN

Search across all available documentation for this part.

Active

Molex

5" PRE-CRIMP A2015 GREEN

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Conductors	Contact End	Length [x]	Length [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Wire Gauge	Contact Finish	Length	Length
Molex 0039000428-04-N2	1	Socket to Cable (Round)	101.6 mm	4 "	1	0.76 Ám	30 Áin	Brown	22 AWG	Gold
Molex 0039000428-05-Y2-D	1	Socket to Socket	127 mm	5 in	1	0.76 Ám	30 Áin	Yellow	22 AWG	Gold
Molex 0039000428-05-G4	1	Socket to Cable (Round)	127 mm	5 in	1	0.76 Ám	30 Áin	Green	24 AWG	Gold
Molex 0039000428-12-A0	1	Socket to Cable (Round)		12 in	1	0.76 Ám	30 Áin		20 AWG	Gold	304.8 mm
Molex 0039000428-02-N9	1	Socket to Cable (Round)			1	0.76 Ám	30 Áin	Brown	18 AWG	Gold
Molex 0039000428-05-R9-D	1	Socket to Socket	127 mm	5 in	1	0.76 Ám	30 Áin	Red	18 AWG	Gold
Molex 0039000428-02-A2	1	Socket to Cable (Round)			1	0.76 Ám	30 Áin		22 AWG	Gold
Molex 0039000428-10-S0	1	Socket to Cable (Round)		10 in	1	0.76 Ám	30 Áin	Slate	20 AWG	Gold	254 mm
Molex 0039000428-08-Y4-D	1	Socket to Socket			1	0.76 Ám	30 Áin	Yellow	24 AWG	Gold	203.2 mm	8 in
Molex 0039000428-06-L2-D	1	Socket to Socket			1	0.76 Ám	30 Áin	Blue	22 AWG	Gold	152.4 mm	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

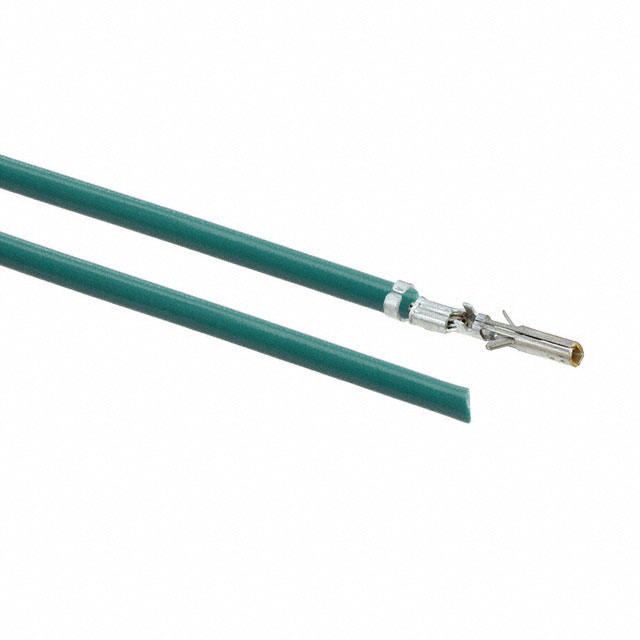

Green 24 AWG Jumper Lead Socket to Cable (Round) Gold 5.00" (127.00mm)

Technical documentation and resources

No documents available
