M4758 SL005

Active

ALPHA WIRE

MULTI-PAIR 22COND 24AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 22COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M4758 SL005

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	9.14 mm
Jacket (Insulation) Diameter [diameter]	0.36 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	22
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Features	Ratings	Wire Gauge	Jacket (Insulation) Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Voltage	Shield Material	Length [x]	Length [x]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type
ALPHA WIRE M4758 SL005	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	UL Style 2464	24 AWG	Poly-Vinyl Chloride (PVC)	Foil	32 AWG	7	100 %	9.14 mm	0.36 "	22	300 V	Aluminum	30.5 m	100 ft	Slate	-20 C	80 C	Copper Tinned	Multi-Pair
ALPHA WIRE M4758 SL002	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	UL Style 2464	24 AWG	Poly-Vinyl Chloride (PVC)	Foil	32 AWG	7	100 %	9.14 mm	0.36 "	22	300 V	Aluminum	152.4 m	500 '	Slate	-20 C	80 C	Copper Tinned	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

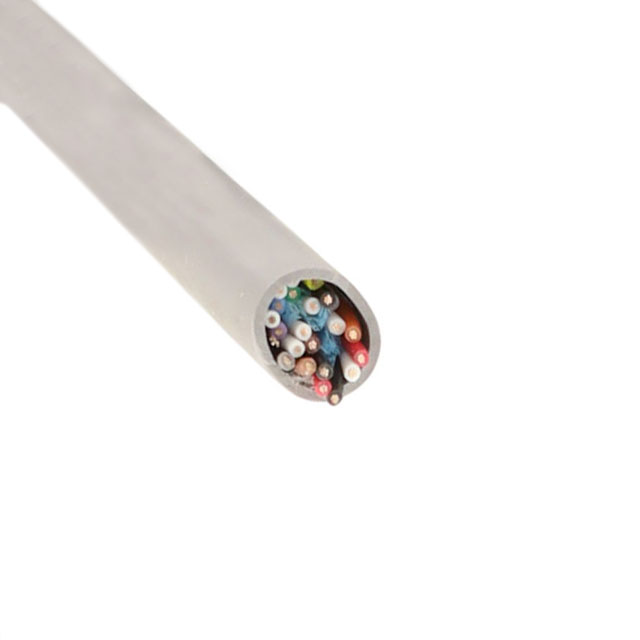

22 (11 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 100.0' (30.5m)
