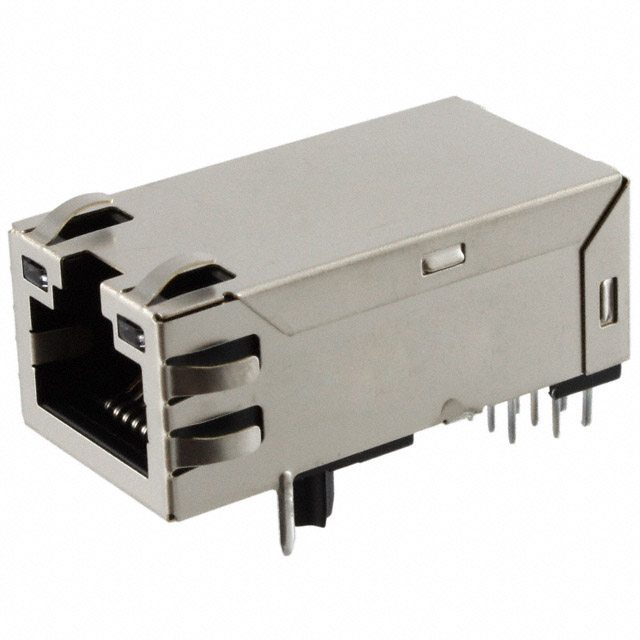

1840728-5
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1840728-5
ActiveTRP Connector B.V.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1840728-5 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board [z] | 13.61 mm |
| Height Above Board [z] | 0.536 " |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.87 | |
| 10 | $ 6.98 | |||
| 25 | $ 6.71 | |||
| 50 | $ 6.44 | |||
| 100 | $ 6.30 | |||
Description
General part information
1840728 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
