XLT2419-08AC
ActiveMarlow Industries, Inc.
TEM THERMOCYCLER 30X29.59X2.34MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLT2419-08AC
ActiveMarlow Industries, Inc.
TEM THERMOCYCLER 30X29.59X2.34MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLT2419-08AC |
|---|---|
| Current - Max [Max] | 13.9 A |
| Delta Tmax @ Th | 27 °C, 56.5 °C |
| Height [z] | 2.34 mm |
| Number of Stages | 1 |
| Operating Temperature | 125 °C |
| Qmax @ Th | 72 W |
| Resistance | 470 mOhms |
| Size / Dimension [x] | 34.01 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.73 | |
| 5 | $ 41.90 | |||
| 10 | $ 40.87 | |||
| 25 | $ 39.58 | |||
| 50 | $ 38.56 | |||
| 100 | $ 37.53 | |||
Description
General part information
XLT2419 Series

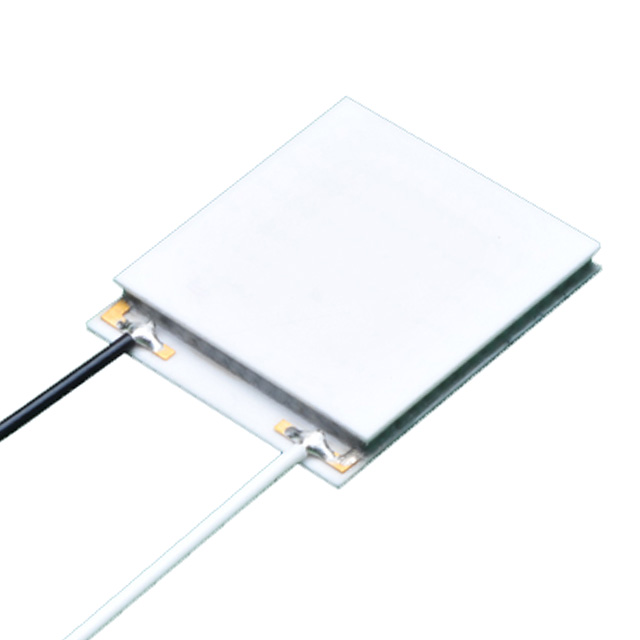

Peltier Module 72.0W @ 27°C 13.9 A 125°C
