DFE2MCAHR15MJ0L
ActiveMurata Power Solutions Inc.

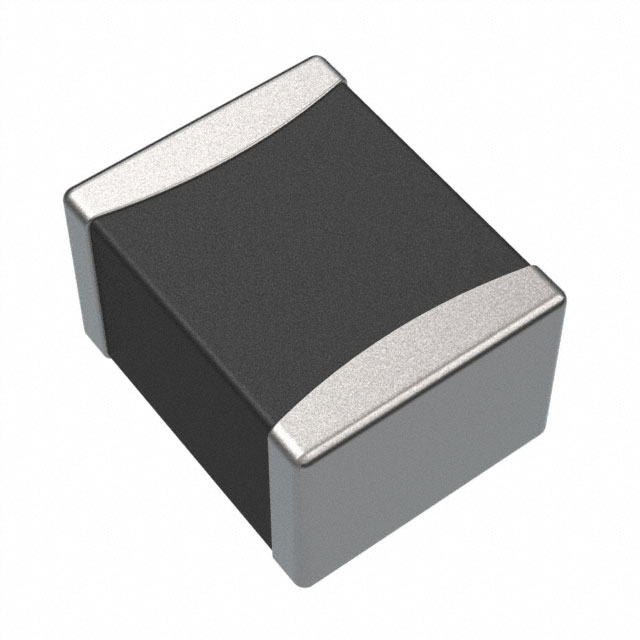

FIXED IND 150NH 4.8A 21 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DFE2MCAHR15MJ0L
ActiveMurata Power Solutions Inc.
FIXED IND 150NH 4.8A 21 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE2MCAHR15MJ0L |
|---|---|
| Current - Saturation (Isat) | 6.1 A |
| Current Rating (Amps) | 4.8 A |
| DC Resistance (DCR) [Max] | 21 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 150 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.56 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 30000 | $ 0.26 | |||
Description
General part information
DFE2MCAH Series
150 nH Shielded Drum Core, Wirewound Inductor 4.8 A 21mOhm Max 0806 (2016 Metric)
