G125-FS11205L0R

Active

Harwin Inc.

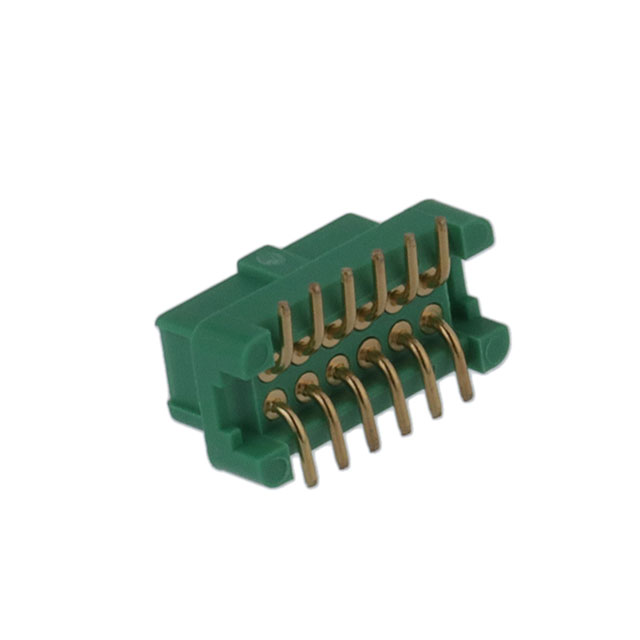

BOARD CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, HALOGEN FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G125 Spec Sheet +6

G125-FS11205L0R

Active

Harwin Inc.

BOARD CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.049 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, HALOGEN FREE

Deep-Dive with AI

DocumentsDatasheet G125 Spec Sheet +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-FS11205L0R

Applications	Automotive, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Latch Holder
Features	Pick and Place, Polarizing Key
Insulation Color	Green
Insulation Height	0.207 in
Insulation Height	5.25 mm
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Style	Board to Board, Cable
Termination	Solder

G125-FS1 Series

Part	Contact Material	Fastening Type	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Features	Contact Shape	Contact Type	Style	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Insulation Color	Applications	Mated Stacking Heights	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
Harwin Inc. G125-FS11005L0P	Copper Alloy	Latch Holder	All	0.049 in	1.25 mm	Solder	10	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS11205L0R	Copper Alloy	Latch Holder	All	0.049 in	1.25 mm	Solder	12	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS11605F3P	Copper Alloy		All	0.049 in	1.25 mm	Solder		Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green		7.33 mm 7.4 mm	450 V	8 µin	0.203 µm	16
Harwin Inc. G125-FS11005F2P	Copper Alloy		All	0.049 in	1.25 mm	Solder	10	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green		7.33 mm 7.4 mm	450 V	8 µin	0.203 µm
Harwin Inc. G125-FS11205L0P	Copper Alloy	Latch Holder	All	0.049 in	1.25 mm	Solder	12	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS12005F1P	Copper Alloy		All	0.049 in	1.25 mm	Solder	20	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	105 ░C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS15005L0P	Copper Alloy	Latch Holder	All	0.049 in	1.25 mm	Solder	50	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS15005F1R	Copper Alloy		All	0.049 in	1.25 mm	Solder	50	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	General Purpose	7.33 mm 7.4 mm	450 V	8 µin	0.203 µm
Harwin Inc. G125-FS11005L0R	Copper Alloy	Latch Holder	All	0.049 in	1.25 mm	Solder	10	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ám	8 Áin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green	Automotive General Purpose
Harwin Inc. G125-FS15005F3P	Copper Alloy		All	0.049 in	1.25 mm	Solder	50	Gold	1.25 mm	0.049 in	Surface Mount	2 A	Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	Circular	Female Socket	Board to Board Cable	UL94 V-0	-65 ░C	150 °C	0.203 Ąm	8 Ąin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.207 in	5.25 mm	2	Green		7.33 mm 7.4 mm	450 V	8 Ąin	0.203 Ąm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 17.02
		10	$ 13.09
		100	$ 10.23
	Digi-Reel®	1	$ 17.02
		10	$ 13.09
		100	$ 10.23
	Tape & Reel (TR)	400	$ 8.91
		800	$ 8.34
		1200	$ 8.10
LCSC	Piece	1	$ 24.26
		200	$ 9.68
		400	$ 9.36
		800	$ 9.20
Newark	Each	250	$ 10.30
		500	$ 9.59
		1000	$ 8.81
		2500	$ 8.62

Description

General part information

G125-FS1 Series

12 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Gold
