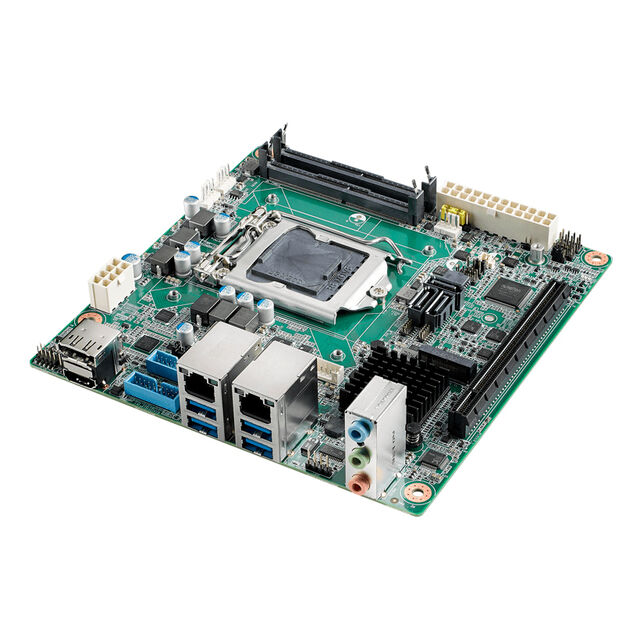

AIMB-277G2-FLA1E

Active

Advantech Corp

LGA1200 MINI-ITX MOTHERBOARD 10TH GEN CORE PROCESSOR

Search across all available documentation for this part.

Active

Advantech Corp

LGA1200 MINI-ITX MOTHERBOARD 10TH GEN CORE PROCESSOR

Technical Specifications

Parameters and characteristics for this part

Specification	AIMB-277G2-FLA1E

Cooling Type	Fan
Core Processor	i3, i7, LGA1200, Intel 10th Gen Core i9, Celeron, Pentium, i5
Ethernet	1000 Mbps, 10 Mbps, 100 Mbps
Ethernet	RJ45 (2), GbE (2)
Expansion Site/Bus	PCIe, M.2
Form Factor	mini-ITX
Number of Cores	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	102 W
RAM Capacity/Installed	0 GB, 64 GB
RS-232 (422, 485)	2
Size / Dimension [x]	170 mm
Size / Dimension [x]	6.693 "
Size / Dimension [y]	170 mm
Size / Dimension [y]	6.693 "
Storage Interface	M.2, SATA 3.0 (3)
USB	USB 3.2 (8)
Watchdog Timer	True

Part	RAM Capacity/Installed	Storage Interface	Ethernet	Ethernet	RS-232 (422, 485)	Cooling Type	Core Processor	Watchdog Timer	Form Factor	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores	Expansion Site/Bus	Power (Watts)	USB
Advantech Corp AIMB-277G2-FLA1E	0 GB 64 GB	M.2 SATA 3.0 (3)	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	2	Fan	Celeron i3 i5 i7 Intel 10th Gen Core i9 LGA1200 Pentium		mini-ITX	170 mm	6.693 "	170 mm	6.693 "	60 °C	0 °C	1	M.2 PCIe	102 W	USB 3.2 (8)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 414.12

General part information

Single Board Computer 1 Core 64GB/0GB RAM Intel 10th Gen Core i9/i7/i5/i3 Pentium/Celeron LGA1200
