G125-MC32005L4-0300F

Active

Harwin Inc.

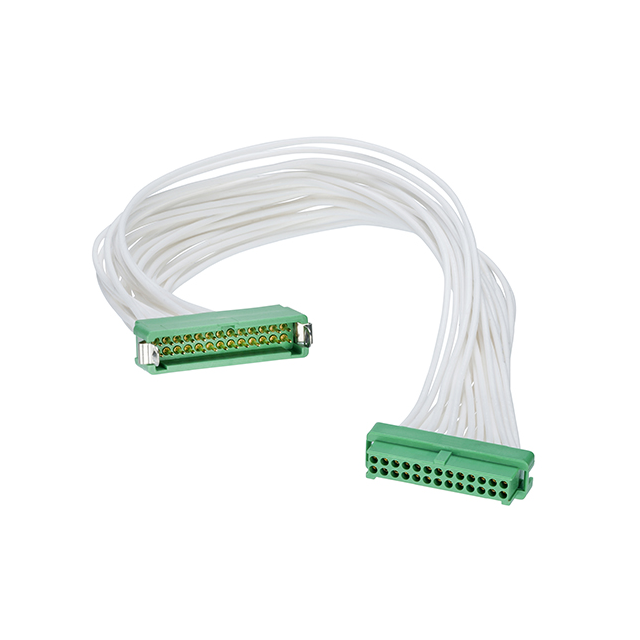

10+10 POS. MALE-FEMALE DIL 30AWG CABLE ASSEMBLY, 300MM, LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

10+10 POS. MALE-FEMALE DIL 30AWG CABLE ASSEMBLY, 300MM, LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MC32005L4-0300F

Cable Termination	Crimp
Connector Type	Socket to Plug
Contact Finish	Gold
Features	Latch Holder, Polarizing Key, Latch Lock
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	20
Number of Rows	2
Pitch - Connector	0.049 in
Pitch - Connector	1.25 mm
Shielding	Unshielded

Part	Cable Termination	Contact Finish	Connector Type	Shielding	Length [x]	Length [x]	Length [x]	Features	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Length	Length	Length
Harwin Inc. G125-MC32005L4-0300F	Crimp	Gold	Socket to Plug	Unshielded	0.984 '	11.81 "	300 mm	Latch Holder Latch Lock Polarizing Key	2	0.049 in	1.25 mm	20
Harwin Inc. G125-MC32605L4-0150M	Crimp	Gold	Plug to Plug	Unshielded				Latch Lock Polarizing Key	2	0.049 in	1.25 mm	26	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-MC32605L4-0150F	Crimp	Gold	Socket to Plug	Unshielded				Latch Holder Latch Lock Polarizing Key	2	0.049 in	1.25 mm	26	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-MC31205L4-0300F	Crimp	Gold	Socket to Plug	Unshielded	0.984 '	11.81 "	300 mm	Latch Holder Latch Lock Polarizing Key	2	0.049 in	1.25 mm	12
Harwin Inc. G125-MC32005L4-0450L	Crimp	Gold	Plug to Individual Wire Leads	Unshielded	17.76 in		450 mm	Latch Lock Polarizing Key	2	0.049 in	1.25 mm	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Plug 0.984' (300.00mm, 11.81")
