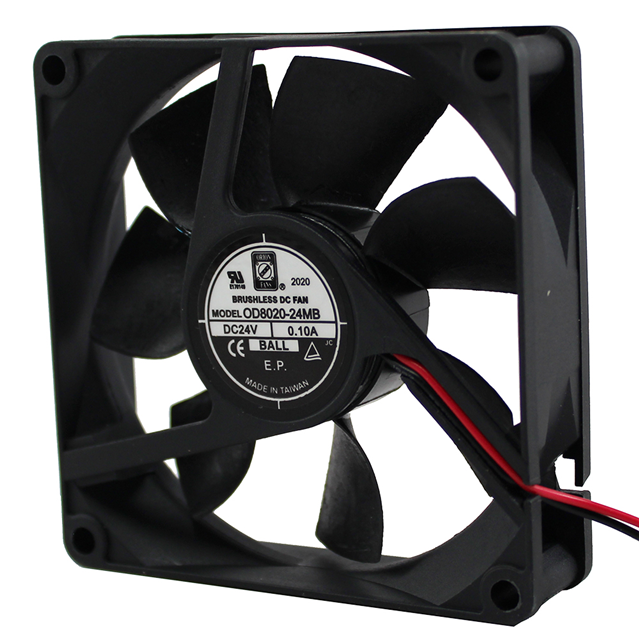

OD8020-24MB
ActiveOrion Fans
DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 32 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OD8020-24MB
ActiveOrion Fans
DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 32 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD8020-24MB |
|---|---|
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Width [y] | 20 mm |
OD8020 Series
...
| Part | Termination | Material - Blade | Width [y] | Features | Voltage - Rated | Fan Type | Material - Frame | Bearing Type | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Sealed Sleeve | 80 mm | 80 mm |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | Speed Sensor (Tach) | 5 V | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Sleeve | 80 mm | 80 mm |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | Locked Rotor Sensor | 5 V | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | 80 mm | 80 mm |
Orion Fans | 4 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control Speed Sensor (Tach) | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | 80 mm | 80 mm |
Orion Fans | 4 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control Speed Sensor (Tach) | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Sealed Sleeve | 80 mm | 80 mm |
Orion Fans | 2 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | 24 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | 80 mm | 80 mm | |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | 80 mm | 80 mm |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Ball | 80 mm | 80 mm |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | PWM Control | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Sleeve | 80 mm | 80 mm |
Orion Fans | 3 Wire Leads | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 20 mm | Speed Sensor (Tach) | 12 VDC | Tubeaxial | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Sealed Sleeve | 80 mm | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OD8020 Series
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 2 Wire Leads
