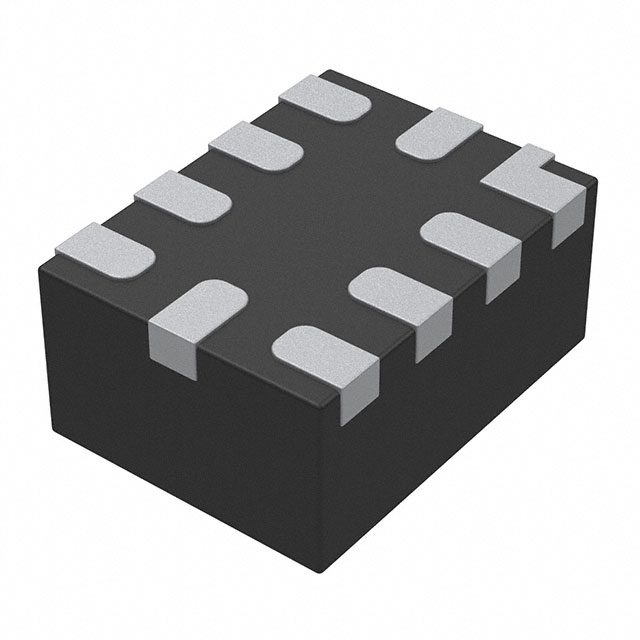

MP5030CGQH-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC PWR SWITCH P-CHANNEL 1:1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC PWR SWITCH P-CHANNEL 1:1

Technical Specifications

Parameters and characteristics for this part

Specification	MP5030CGQH-Z

Current - Output (Max) [Max]	3 A
Fault Protection	Current Limiting (Fixed), Short Circuit, Over Temperature, UVLO, Over Voltage
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Type	P-Channel
Package / Case	10-VFQFN
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	32 mOhm
Supplier Device Package	10-QFN
Supplier Device Package [x]	1.5
Supplier Device Package [y]	2
Switch Type	USB Switch
Voltage - Load [Max]	14 V
Voltage - Supply (Vcc/Vdd) [Max]	14 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

Part	Contents	Utilized IC / Part	Function	Type	Primary Attributes	Secondary Attributes	Voltage - Load [Max]	Output Type	Fault Protection	Number of Outputs	Ratio - Input:Output [custom]	Mounting Type	Current - Output (Max) [Max]	Package / Case	Rds On (Typ)	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Type
MONOLITHIC POWER SYSTEMS (MPS) EV5030-QH-00C	Board(s)	MP5030	Battery Charger	Power Management	14 V	On-Board Test Points
MONOLITHIC POWER SYSTEMS (MPS) MP5030CGQH-P							14 V	P-Channel	Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit UVLO	1	1:1	Surface Mount	3 A	10-VFQFN	32 mOhm	10-QFN	1.5	2	14 V	3 V	-40 °C	125 ¯C	USB Switch
MONOLITHIC POWER SYSTEMS (MPS) MP5030CGQH-Z							14 V	P-Channel	Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit UVLO	1	1:1	Surface Mount	3 A	10-VFQFN	32 mOhm	10-QFN	1.5	2	14 V	3 V	-40 °C	125 ¯C	USB Switch
MONOLITHIC POWER SYSTEMS (MPS) MP5030DGQH-Z							14 V	P-Channel	Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit UVLO	1	1:1	Surface Mount	3 A	10-VFQFN	32 mOhm	10-QFN	1.5	2	14 V	3 V	-40 °C	125 ¯C	USB Switch
