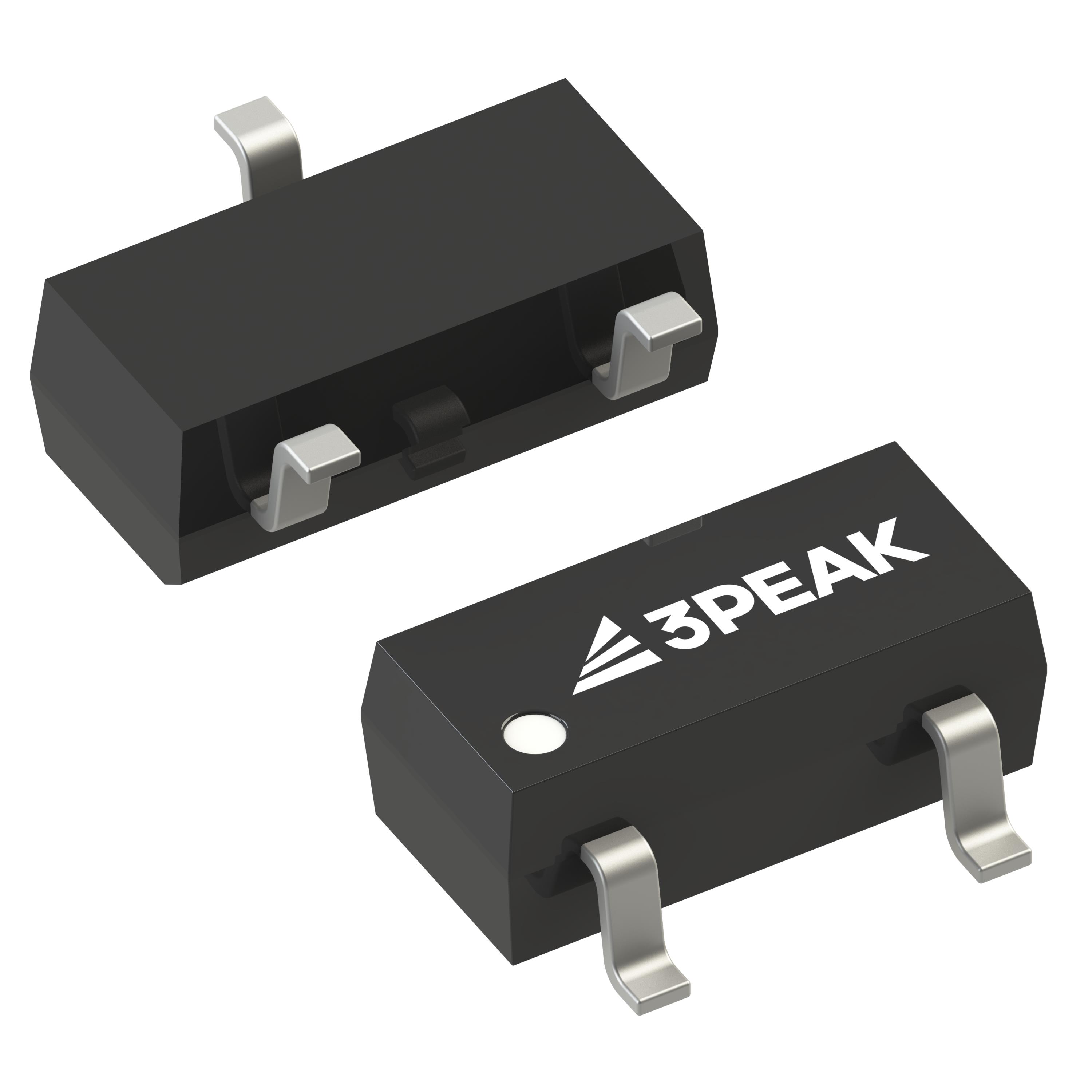

TPR3320-S3TR
Active3PEAK
IC VREF SERIES 2.048V TO236-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPR3320-S3TR
Active3PEAK
IC VREF SERIES 2.048V TO236-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPR3320-S3TR |
|---|---|
| Current - Supply | 180 µA |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | 40 µVp-p |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Series |
| Supplier Device Package | SOT-23G-3 |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 0.15 % |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.098 V |
| Voltage - Output (Min/Fixed) | 2.048 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.48 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.63 | |||
| 25 | $ 2.48 | |||
| 100 | $ 2.11 | |||
| 250 | $ 1.98 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.44 | |||
| Tape & Reel (TR) | 3000 | $ 1.34 | ||
| 6000 | $ 1.29 | |||
Description
General part information
TPR3320 Series
Series Voltage Reference IC Fixed 2.048V V ±0.15% SOT-23G-3
