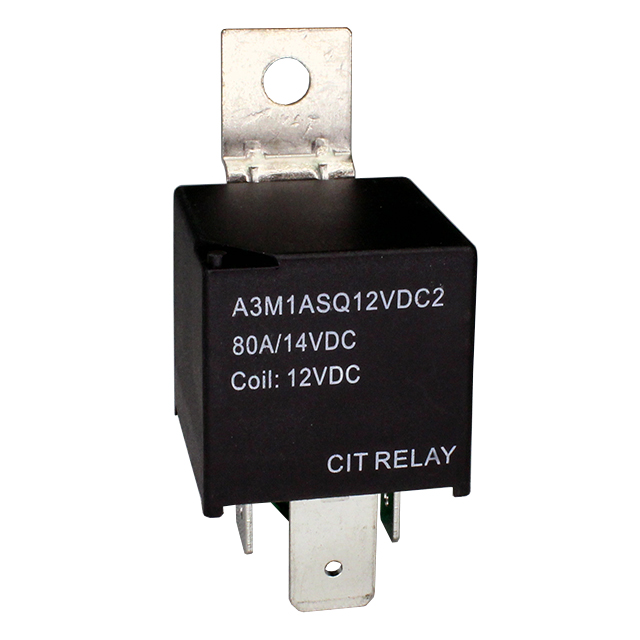

A3M1ASQ12VDC2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A3M1ASQ12VDC2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A3M1ASQ12VDC2 |
|---|---|
| Coil Current | 150 mA |
| Coil Power | 1.8 W |
| Coil Resistance | 80 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 80 A |
| Features | Sealed - Fully |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - Multiple Sizes |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.93 | |
| 20 | $ 3.68 | |||
| 40 | $ 3.11 | |||
| 80 | $ 2.95 | |||
| 240 | $ 2.62 | |||
| 440 | $ 2.45 | |||
| 960 | $ 2.29 | |||
Description
General part information
A3M1ASQ Series
RELAY AUTOMOTIVE SPST 80A 12V
