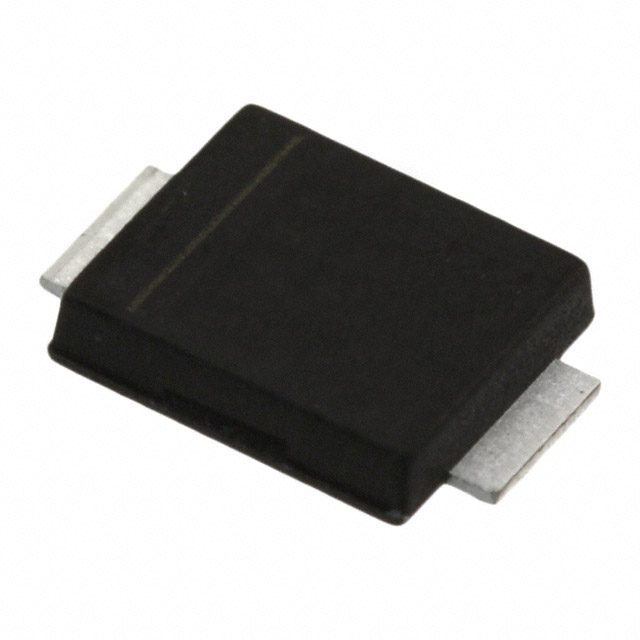

SRM560VF_R1_00001
ActivePanjit International Inc.
SMBF, SKY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRM560VF_R1_00001
ActivePanjit International Inc.
SMBF, SKY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRM560VF_R1_00001 |
|---|---|
| Capacitance @ Vr, F | 300 pF |
| Current - Average Rectified (Io) | 5 A |
| Current - Reverse Leakage @ Vr | 220 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SMB Flat Leads, DO-221AA |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SMBF |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 520 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.78 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.78 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Tape & Reel (TR) | 1500 | $ 0.14 | ||
| 3000 | $ 0.14 | |||
Description
General part information
SRM560 Series
Diode 60 V 5A Surface Mount SMBF
