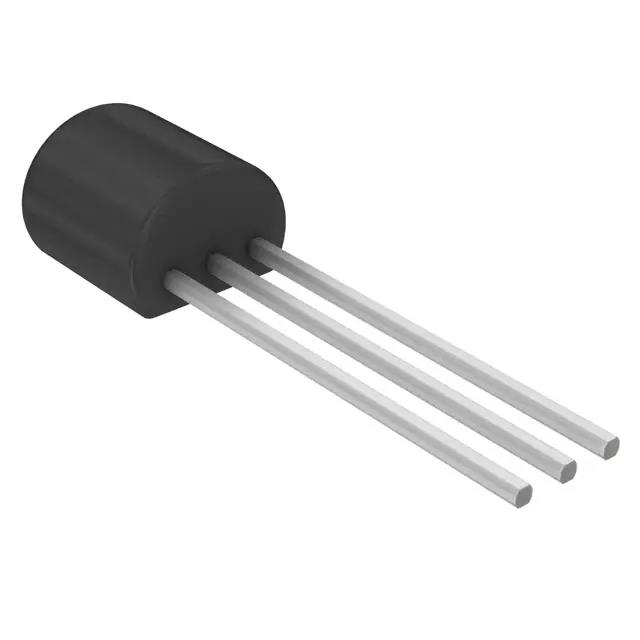

SX014CR

Active

SMC Diode Solutions

SCR 900V 1.25A TO92CR

Search across all available documentation for this part.

Active

SMC Diode Solutions

SCR 900V 1.25A TO92CR

Technical Specifications

Parameters and characteristics for this part

Specification	SX014CR

Current - Gate Trigger (Igt) (Max) [Max]	200 µA
Current - Hold (Ih) (Max) [Max]	4 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20 A
Current - Off State (Max) [Max]	5 µA
Current - On State (It (RMS)) (Max)	1.25 A
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-226-3, TO-92-3
SCR Type	Sensitive Gate
Supplier Device Package	TO-92
Voltage - Gate Trigger (Vgt) (Max) [Max]	800 mV
Voltage - Off State	900 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	SCR Type	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - On State (It (RMS)) (Max)	Package / Case	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]
SMC Diode Solutions SX014CR	4 mA	5 µA	110 °C	-40 °C	TO-92	Sensitive Gate	900 V	200 µA	Through Hole	1.25 A	TO-226-3 TO-92-3	1.5 V	20 A	800 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 900 V 1.25 A Sensitive Gate Through Hole TO-92
