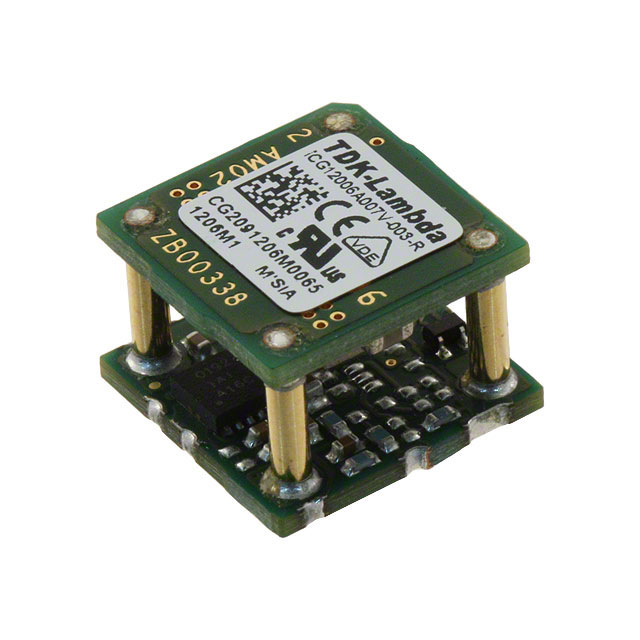

ICG12006A007V-003-R
ActiveTDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 33 W, 700 MV, 5.5 V, 6 A
Deep-Dive with AI
Search across all available documentation for this part.
ICG12006A007V-003-R
ActiveTDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 33 W, 700 MV, 5.5 V, 6 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICG12006A007V-003-R |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 94 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ICG12006 Series
ICG12006A007V-003-R is an iCG series non-isolated SMT point of load. It includes overcurrent protection. Application includes industrial, test, communication and broadcast. Certified by IEC60950-1, CSA60950-1, UL60950-1, IEC62368-1, CSA62368-1, UL62368-1.
