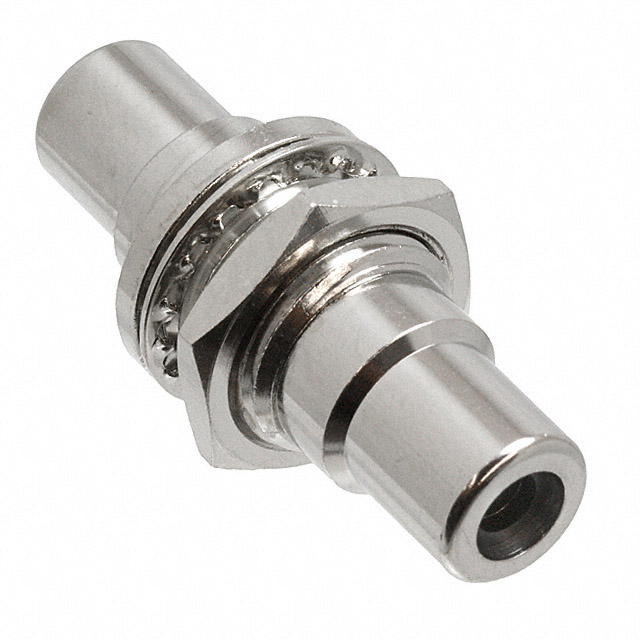

BPJJ01X
ActiveSwitchcraft Inc.
ADAPT RCA JACK TO RCA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJJ01X
ActiveSwitchcraft Inc.
ADAPT RCA JACK TO RCA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPJJ01X |
|---|---|
| Actual Diameter [diameter] | 0.126 in, 0.327 in |
| Actual Diameter [diameter] | 8.3 mm, 3.2 mm |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Phono (RCA) Jack |
| Convert To (Adapter End) | Phono (RCA) Jack |
| Features | Mounting Hardware |
| Gender | Female to Female |
| Includes | Connector, Washer, Nut |
| Insulation Color | Black |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions/Contacts | 2 Conductors |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.01 | |
| 10 | $ 6.14 | |||
| 25 | $ 5.54 | |||
| 50 | $ 5.14 | |||
| 100 | $ 4.77 | |||
| 300 | $ 4.25 | |||
| 500 | $ 4.04 | |||
| 1000 | $ 3.78 | |||
| 2500 | $ 3.52 | |||
Description
General part information
BPJJ01 Series
Adapter Connector Phono (RCA) Jack To Phono (RCA) Jack Panel Mount
