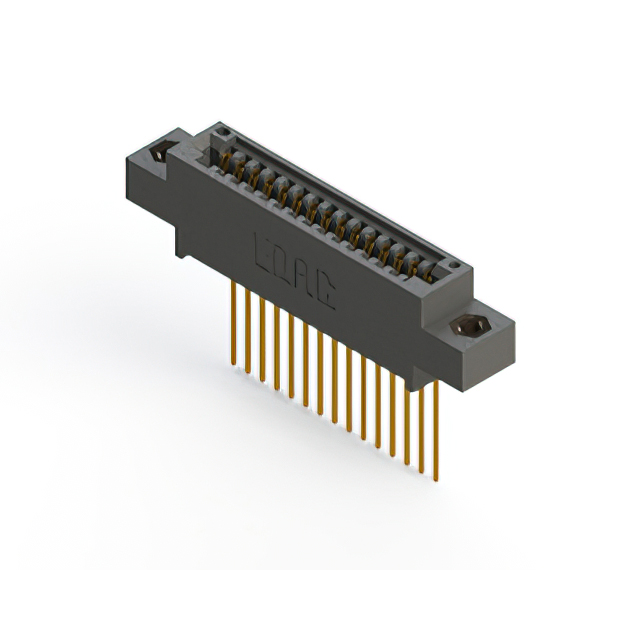

895-015-541-607
ActiveEDAC Inc.
CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-015-541-607
ActiveEDAC Inc.
CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-015-541-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
895-015 Series
...
| Part | Number of Positions | Gender | Material - Insulation | Mounting Type | Flange Feature | Read Out | Contact Material | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions/Bay/Row [custom] | Contact Finish | Termination | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | M3 Threaded Insert Top Mount Opening | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Wire Wrap | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | ||||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | Floating Bobbin Top Mount Opening | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 2.95 mm | 0.116 in | ||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | M3 Threaded Insert Top Mount Opening | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | ||||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | M3 Threaded Insert Top Mount Opening | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Wire Wrap | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | ||||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | Floating Bobbin Top Mount Opening | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 2.95 mm | 0.116 in | ||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Wire Wrap | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole Right Angle | Flush Mount Top Opening Unthreaded | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 3.96 mm | 0.156 in | ||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Wire Wrap | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 15 | Female | Polyphenylene Sulfide (PPS) | Through Hole | Side Mount Opening Unthreaded | Single | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Black | 15 | Gold | Solder | 2.54 mm | 0.1 in | Cantilever | 1 | Non Specified - Single Edge | 125 °C | -40 °C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
