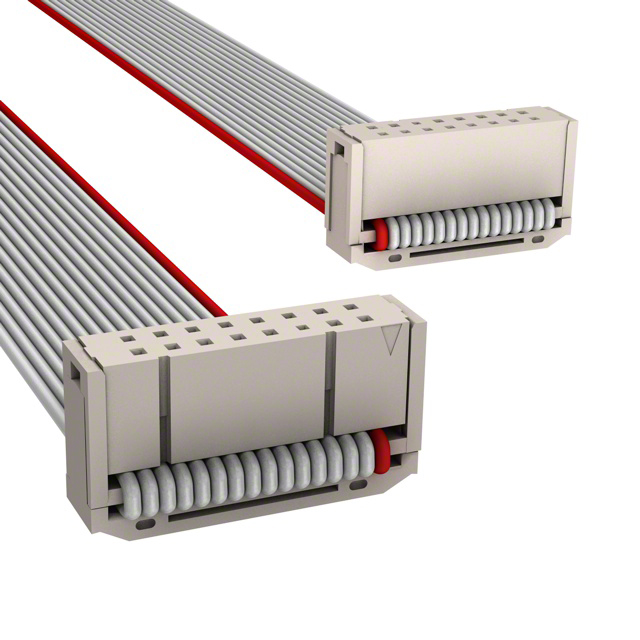

M3BBK-1606J

Active

3M (TC)

IDC CABLE - MSR16K/MC16G/MSR16K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3BBK-1606J

Active

3M (TC)

IDC CABLE - MSR16K/MC16G/MSR16K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3BBK-1606J

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3BBK Series

Part	Length [x]	Length [x]	Number of Rows	Connector Type	Cable Termination	Features	Pitch - Connector	Pitch - Connector	Shielding	Contact Finish	Number of Positions	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Color	Length	Length	Number of Positions
3M (TC) M3BBK-5036J	3 ft	914.4 mm	2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	50	0.05 "	1.27 mm	0.76 Ám	30 Áin
3M (TC) M3BBK-2660K			2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	26	0.05 "	1.27 mm	0.76 Ám	30 Áin	1.52 m	5 '	Multiple Twisted Pair (Flat)
3M (TC) M3BBK-1606J			2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold		0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm			6 "	0.5 '	16
3M (TC) M3BBK-6060K			2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	60	0.05 "	1.27 mm	0.76 Ám	30 Áin	1.52 m	5 '	Multiple Twisted Pair (Flat)
3M (TC) M3BBK-2036R	3 ft	914.4 mm	2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	20	0.05 "	1.27 mm	0.76 Ám	30 Áin			Multiple Ribbon
3M (TC) M3BBK-6006R			2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	60	0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm		Multiple Ribbon	6 "	0.5 '
3M (TC) M3BBK-3418R	1.5 ft	457.2 mm	2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	34	0.05 "	1.27 mm	0.76 Ám	30 Áin			Multiple Ribbon
3M (TC) M3BBK-2636R	3 ft	914.4 mm	2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	26	0.05 "	1.27 mm	0.76 Ám	30 Áin			Multiple Ribbon
3M (TC) M3BBK-3418J	1.5 ft	457.2 mm	2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold	34	0.05 "	1.27 mm	0.76 Ám	30 Áin
3M (TC) M3BBK-1606R			2	Socket to Socket	IDC	Strain Relief	0.1 in	2.54 mm	Unshielded	Gold		0.05 "	1.27 mm	0.76 Ám	30 Áin	152.4 mm		Multiple Ribbon	6 "	0.5 '	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.72
		10	$ 10.55
		25	$ 9.53
		50	$ 8.85
		100	$ 8.23
		250	$ 7.49
		500	$ 7.00
		1000	$ 6.55
LCSC	Piece	1	$ 5.93

Description

General part information

M3BBK Series

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

3365 Series Datasheet
