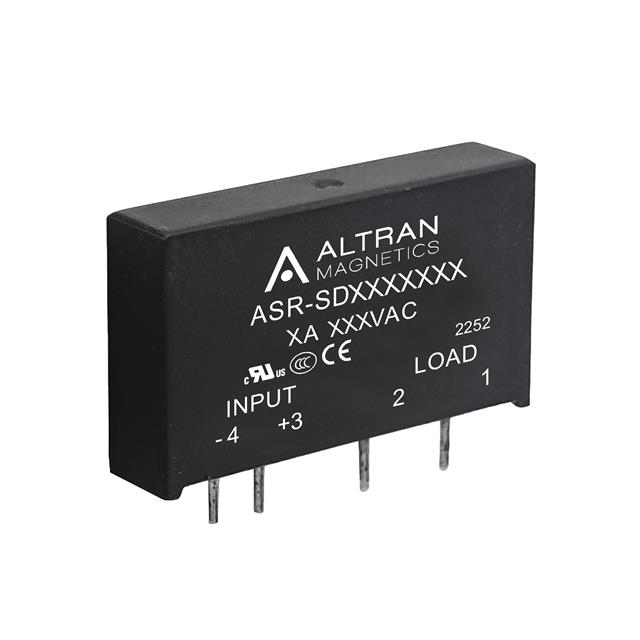

ASR-SD380D5ZH

Active

Altran Magnetics, LLC

24V~440V 5A 1 FORM A (SPST-NO) SIP-4 SOLID STATE RELAYS (TRIAC OUTPUT) ROHS

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

24V~440V 5A 1 FORM A (SPST-NO) SIP-4 SOLID STATE RELAYS (TRIAC OUTPUT) ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Termination Style	Load Current	Supplier Device Package	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Altran Magnetics, LLC ASR-SD380D5ZW	4-SIP	PC Pin	5 A	4-SIP	AC Zero Cross	32 V	4 V	CCC CE cURus	Through Hole	48 V	48 V	-30 ░C	80 C
Altran Magnetics, LLC ASR-SD380D5ZH	4-SIP	PC Pin	5 A	4-SIP	AC Zero Cross	32 V	15 V	CCC CE cURus	Through Hole	24 V	440 V	-30 ░C	80 C
Altran Magnetics, LLC ASR-SD380D5ZL	4-SIP	PC Pin	5 A	4-SIP	AC Zero Cross	15 V	4 V	CCC CE cURus	Through Hole	24 V	440 V	-30 ░C	80 C
Altran Magnetics, LLC ASR-SD380D5RH	4-SIP	PC Pin	5 A	4-SIP	AC	32 V	15 V	CCC CE cURus	Through Hole	24 V	440 V	-30 ░C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 4-SIP
