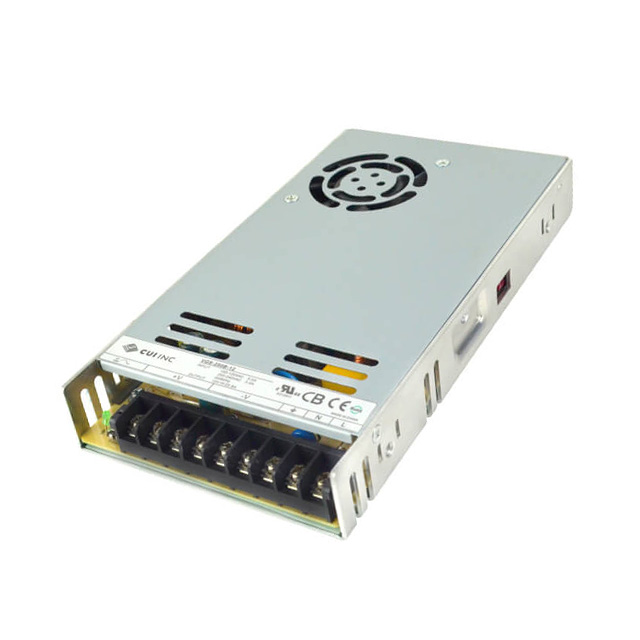

VGS-250B-24

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 24V 10.5A 252W 9-PIN

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 24V 10.5A 252W 9-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Applications	Power (Watts)	Number of Outputs	Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 1	Mounting Type	Standard Number	Features	Efficiency
CUI Inc. VGS-250B-48	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	250 W	1	Enclosed	1.5 kV	-20 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	48 V	30 mm	4.53 "	1.18 in	215 mm	115 mm	8.46 "	5.2 A	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output
CUI Inc. VGS-250B-24	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	252 W	1	Enclosed	1.5 kV	-20 °C	70 °C	90 VAC 180 VAC	132 VAC 264 VAC	24 V	30 mm	4.53 "	1.18 in	215 mm	115 mm	8.46 "	10.5 A	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	Adjustable Output	89 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 132 VAC, 180 ~ 264 VAC Input

Technical documentation and resources

No documents available
