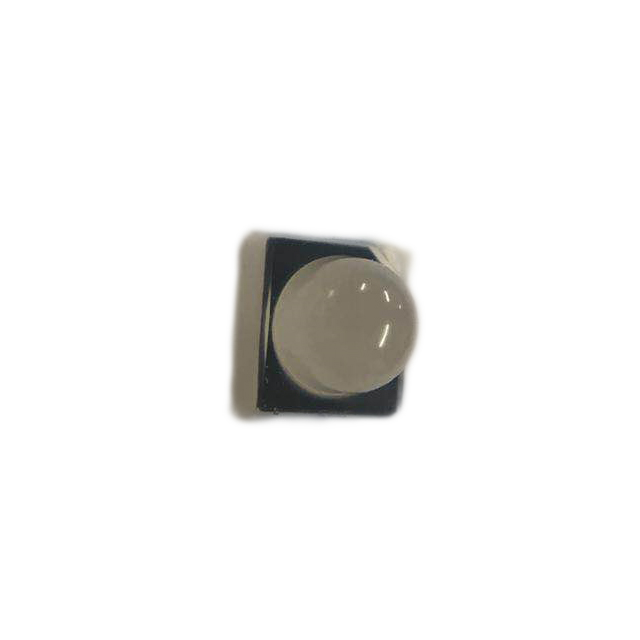

QBLP677AD-RGB2
ActiveQT Brightek (QTB)
LED RGB DIFFUSED 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP677AD-RGB2
ActiveQT Brightek (QTB)
LED RGB DIFFUSED 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP677AD-RGB2 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 3.6 mm |
| Lens Color | White |
| Lens Size [diameter] | 2.4 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 300 mcd |
| Millicandela Rating [custom] | 760 mcd |
| Millicandela Rating [custom] | 2340 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V, 2 V, 2.8 V |
| Wavelength - Dominant | 525 nm, 620 nm, 465 nm |
QBLP677 Series
| Part | Wavelength - Dominant | Millicandela Rating | Lens Transparency | Size / Dimension [y] | Size / Dimension [x] | Lens Color | Voltage - Forward (Vf) (Typ) | Mounting Type | Color | Package / Case | Lens Size [diameter] | Configuration | Height (Max) [Max] | Viewing Angle | Supplier Device Package | Current - Test | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Style | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QT Brightek (QTB) | 588 nm | 780 mcd | Clear | 2.8 mm | 3.2 mm | Colorless | 2 V | Surface Mount | Yellow | 4-SMD J-Lead | 2.4 mm | Standard | 1.9 mm | 120 ° | 4-PLCC | 20 mA | |||||||||||
QT Brightek (QTB) | 465 nm 525 nm 620 nm | Clear | 2.8 mm | 3.5 mm | Colorless | Surface Mount | Blue Green Red | 4-SMD J-Lead | 2.4 mm | Common Cathode | 30 ° | 4-PLCC | 2 V | 3.1 V | 3.2 V | 20 mA | 20 mA | 20 mA | Round with Domed Top | 200 mcd | 120 mcd | 340 mcd | 3.6 mm | ||||
QT Brightek (QTB) | 465 nm 525 nm 620 nm | Diffused | White | 2 V 2.8 V 3.1 V | Surface Mount | Blue Green Red | 4-SMD J-Lead | 2.4 mm | Common Anode | 30 ° | 4-PLCC | 20 mA | 20 mA | 20 mA | Round with Domed Top | 760 mcd | 300 mcd | 2340 mcd | 3.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2000 | $ 0.36 | ||
| 6000 | $ 0.35 | |||
| 10000 | $ 0.35 | |||
Description
General part information
QBLP677 Series
Red, Green, Blue (RGB) 620nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3.1V Blue 4-SMD, J-Lead
