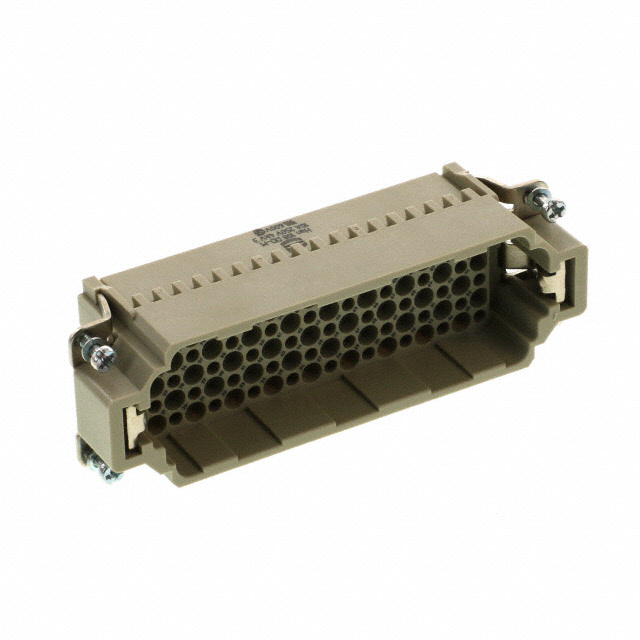

09161083001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 108+PE, LESS CONTACTS, HAN DD SERIES, INSERT, 109 CONTACTS, 24B, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

09161083001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 108+PE, LESS CONTACTS, HAN DD SERIES, INSERT, 109 CONTACTS, 24B, PLUG

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09161083001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	108+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	600 V

09161083 Series

Part	Material Flammability Rating	Housing Material	Size	Connector Type	Number of Positions	Termination Style	Contact Type	Voltage Rating	Current Rating (Amps)	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
HARTING Technology Group 09161083101	UL94 V-0	Polycarbonate (PC)	24 B	Insert without Contacts	108+Ground	Crimp	Han® D	600 V	10 A	Gray	Female	125 °C	-40 °C
HARTING Technology Group 09161083111	UL94 V-0	Polycarbonate (PC)	24 B	Insert without Contacts	108+Ground	Crimp	Han® D	600 V	10 A	Gray	Female	125 °C	-40 °C
HARTING Technology Group 09161083017														108
HARTING Technology Group 09161083011	UL94 V-0	Polycarbonate (PC)	24 B	Insert without Contacts	108+Ground	Crimp	Han® D	600 V	10 A	Gray	Male	125 °C	-40 °C
HARTING Technology Group 09161083001	UL94 V-0	Polycarbonate (PC)	24 B	Insert without Contacts	108+Ground	Crimp	Han® D	600 V	10 A	Gray	Male	125 °C	-40 °C
HARTING Technology Group 09161083007														108
HARTING Technology Group 09161083018														108
HARTING Technology Group 09161083117				Insert without Contacts		Crimp								108
HARTING Technology Group 09161083118														108

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.50
		10	$ 21.86
		25	$ 19.66
		50	$ 19.40
Newark	Each	1	$ 31.26
		5	$ 29.76
		10	$ 28.25
		25	$ 26.29
		50	$ 25.22
		100	$ 25.01

Description

General part information

09161083 Series

The 09161083001 is a 108-way 6-row Han® Rectangular Insert with crimp termination, male type, RAL 7032 (light grey) polycarbonate construction, 0.14 to 2.5mm² wire cross-section.
