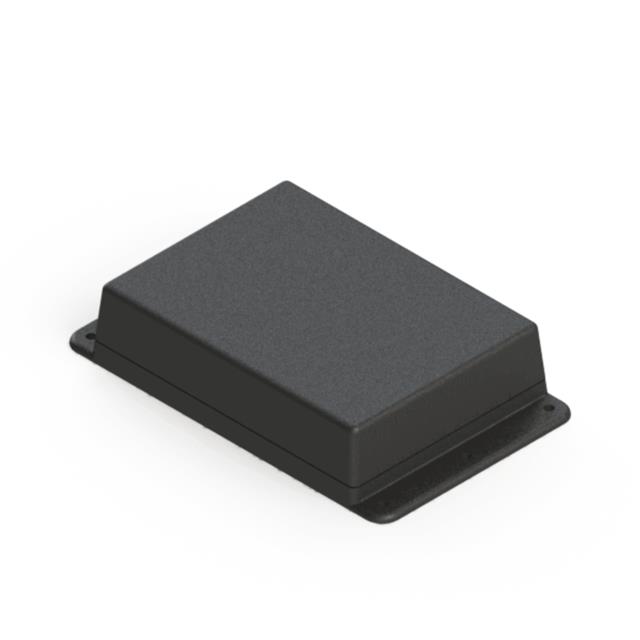

WM031,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 84 MM, 136 MM, IP40

Search across all available documentation for this part.

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 27.94 MM, 84 MM, 136 MM, IP40

Technical Specifications

Parameters and characteristics for this part

Specification	WM031,BK

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	27.94 mm
Height [z]	1.1 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.18 lb
Weight	81.65 g

Part	Features	Container Type	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Material Flammability Rating	Thickness	Thickness	Weight	Weight	Color	Material	Ratings	Design
Serpac WM031RI,AL	Front Access Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Almond	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031R,BK	Front Access Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Black	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031R,AL	Front Access Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Almond	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031I,BK	Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Black	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031,BK	Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Black	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031,GY	Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Gray	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031I,AL	Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Almond	Plastic ABS	IP40 NEMA 1	Cover Included
Serpac WM031I,GY	Mounting Flange PCB Supports Wall Mount	Box	27.94 mm	1.1 in	14.2 in²	92 cm˛	UL94 HB	2.54 mm	0.1 in	0.18 lb	81.65 g	Gray	Plastic ABS	IP40 NEMA 1	Cover Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.100" (27.94mm)
