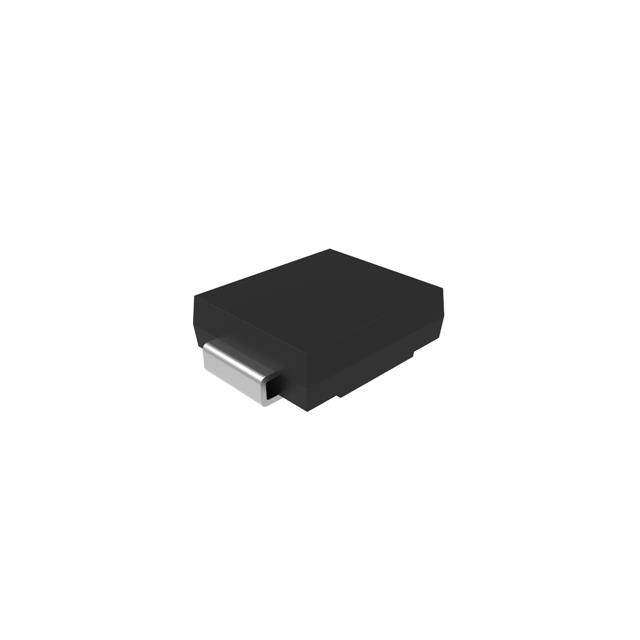

SMLJ51CA-TP

Active

Micro Commercial Components

TVS DIODE 51VWM 82.4VC DO214AB

Search across all available documentation for this part.

Active

Micro Commercial Components

TVS DIODE 51VWM 82.4VC DO214AB

Technical Specifications

Parameters and characteristics for this part

Specification	SMLJ51CA-TP

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	36.4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Clamping (Max) @ Ipp	82.4 V
Voltage - Reverse Standoff (Typ)	51 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Reverse Standoff (Typ)	Mounting Type	Current - Peak Pulse (10/1000µs)	Type	Supplier Device Package	Package / Case	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Unidirectional Channels [custom]	Power - Peak Pulse	Power - Peak Pulse	Bidirectional Channels [custom]
Micro Commercial Components SMLJ51A-TP	-55 °C	175 ░C	General Purpose	51 V	Surface Mount	36.4 A	Zener	DO-214AB (SMC)	DO-214AB SMC	82.4 V		1	3000 W	3 kW
Micro Commercial Components SMLJ51CA-TP	-55 °C	175 ░C	General Purpose	51 V	Surface Mount	36.4 A	Zener	DO-214AB (SMC)	DO-214AB SMC	82.4 V			3000 W	3 kW	1
