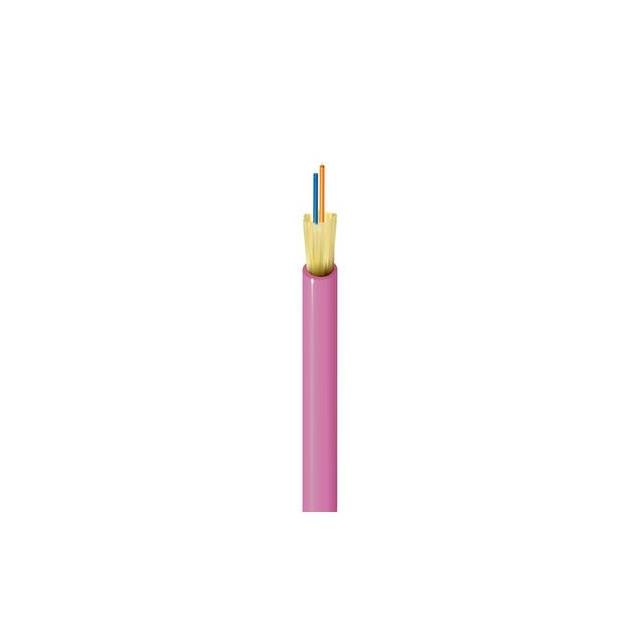

FI4D002R9

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI4D002R9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Rip Cord
Features	2 pcs per Pkg
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Jacket (Insulation) Material	Style	Core Diameter [diameter]	Jacket Color	Ratings	Tensile Strength	Features	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cladding Diameter [diameter]
Belden Inc. FI4D002P9A	Poly-Vinyl Chloride (PVC)	Multiple Fibers	50 µm	Aqua	OFNP	20.4 kg	Rip Cord	2 pcs per Pkg	70 °C	0 °C	Multimode	0.174 "	4.42 mm	125 µm
Belden Inc. FI4D002R9	Poly-Vinyl Chloride (PVC)	Multiple Fibers	50 µm	Violet	OFNR	20.4 kg	Rip Cord	2 pcs per Pkg	70 °C	-20 C	Multimode	0.184 in	4.67 mm	125 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 0.64

General part information

Fiber Optic Cable Violet Multimode 125µm

Technical documentation and resources
