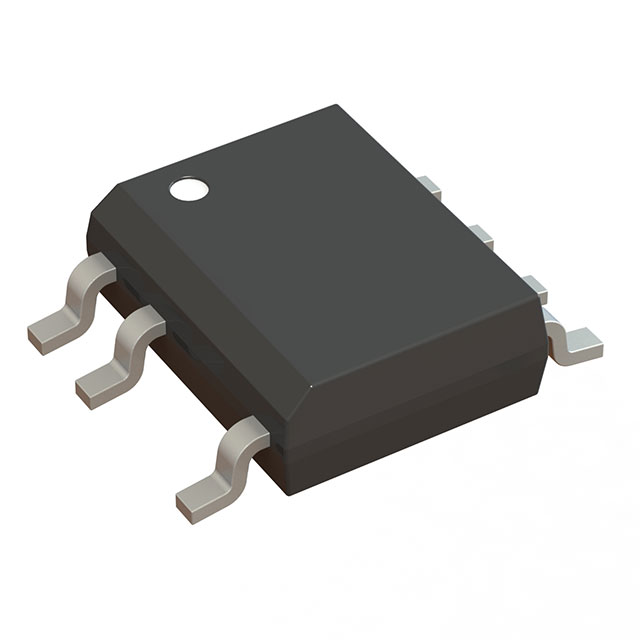

HF500GS-7-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC OFFLINE SWITCH FLYBACK 8SOIC

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC OFFLINE SWITCH FLYBACK 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	HF500GS-7-Z

Control Features	Soft Start
Fault Protection	Over Temperature, Over Load, Over Voltage, Short Circuit
Frequency - Switching	65 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	8-SOIC
Package / Case	0.154 in
Package / Case [custom]	7
Package / Case [custom]	3.9 mm
Power (Watts)	1.5 W
Supplier Device Package	8-SOIC-7B
Topology	Flyback
Voltage - Breakdown	700 V
Voltage - Supply (Vcc/Vdd) [Max]	24 V
Voltage - Supply (Vcc/Vdd) [Min]	12.5 V

Part	Output Isolation	Frequency - Switching	Voltage - Breakdown	Package / Case	Package / Case	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Supplier Device Package	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Fault Protection	Topology	Utilized IC / Part	Supplied Contents	Voltage - Output	Regulator Topology	Board Type	Power - Output	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case [custom]	Package / Case [custom]
MONOLITHIC POWER SYSTEMS (MPS) HF500GP-30	Isolated	25 kHz	700 V	7.62 mm	0.3 in 7 Leads	8-DIP	12.5 V	24 V	Through Hole	8-PDIP-7B	Soft Start	-40 °C	125 ¯C	45 W	Over Load Over Temperature Over Voltage Short Circuit	Flyback
MONOLITHIC POWER SYSTEMS (MPS) EVHF500-7-S-00A																	HF500-7	Board(s)	5 V 12 V	Flyback	Fully Populated	5.1 W	2	Non-Isolated	AC/DC Primary Side	90 VAC	265 VAC
MONOLITHIC POWER SYSTEMS (MPS) HF500GS-7-Z	Isolated	65 kHz	700 V		0.154 in	8-SOIC	12.5 V	24 V	Surface Mount	8-SOIC-7B	Soft Start	-40 °C	125 ¯C	1.5 W	Over Load Over Temperature Over Voltage Short Circuit	Flyback												7	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Converter Offline Flyback Topology 65kHz 8-SOIC-7B
