71AD30-02-1-AJS

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Search across all available documentation for this part.

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Technical Specifications

Parameters and characteristics for this part

Part	Depth Behind Panel [z]	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Contact Timing	Number of Positions [Max]	Number of Positions [Min]	Voltage Rating - AC	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Number of Decks	Contact Material	Circuit per Deck [custom]	Index Stops	Angle of Throw	Actuator Length [x]	Number of Decks [custom]	Circuit per Deck
Grayhill Inc. 71AD30-02-2-AJS	24.87 mm	250 mA	Solder Lug	30 V	Shorting	6	2	115 V	2	3.17 mm	Flatted	2	Silver Alloy	DP6T	Adjustable	30 °	9.53 mm
Grayhill Inc. 71AD30-01-1-AJS	19.33 mm	250 mA	Solder Lug	30 V	Shorting	12	2	115 V	1	3.17 mm	Flatted		Silver Alloy		Adjustable	30 °	9.53 mm	1	SP12T
Grayhill Inc. 71AD30-02-1-AJS	24.87 mm	250 mA	Solder Lug	30 V	Shorting	12	2	115 V	1	3.17 mm	Flatted	2	Silver Alloy		Adjustable	30 °	9.53 mm		SP12T
Grayhill Inc. 71AD30-03-1-AJN	30.4 mm	250 mA	Solder Lug	30 V	Non-Shorting	12	2	115 V	1	3.17 mm	Flatted	3	Silver Alloy		Adjustable	30 °	9.53 mm		SP12T
Grayhill Inc. 71AD30-01-1-AJN	19.33 mm	250 mA	Solder Lug	30 V	Non-Shorting	12	2	115 V	1	3.17 mm	Flatted		Silver Alloy		Adjustable	30 °	9.53 mm	1	SP12T
Grayhill Inc. 71AD30-03-1-AJS	30.4 mm	250 mA	Solder Lug	30 V	Shorting	12	2	115 V	1	3.17 mm	Flatted	3	Silver Alloy		Adjustable	30 °	9.53 mm		SP12T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

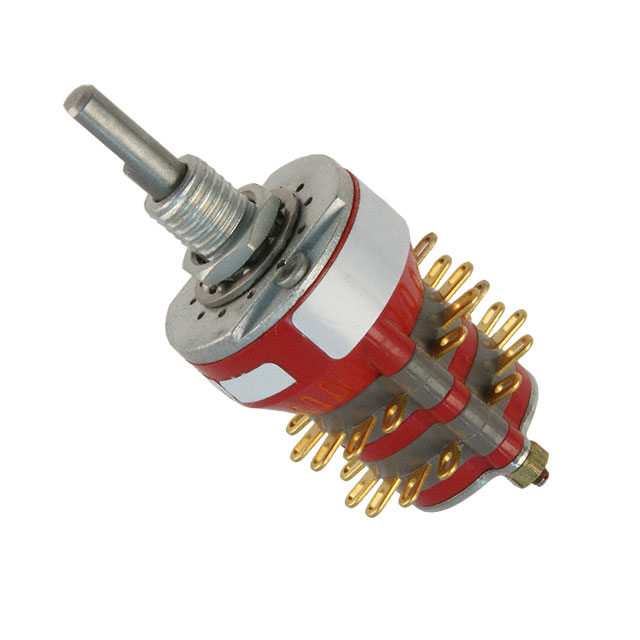

Rotary Switch 2 ~ 12 Position SP12T 250mA (AC/DC) 115 VAC Panel Mount
