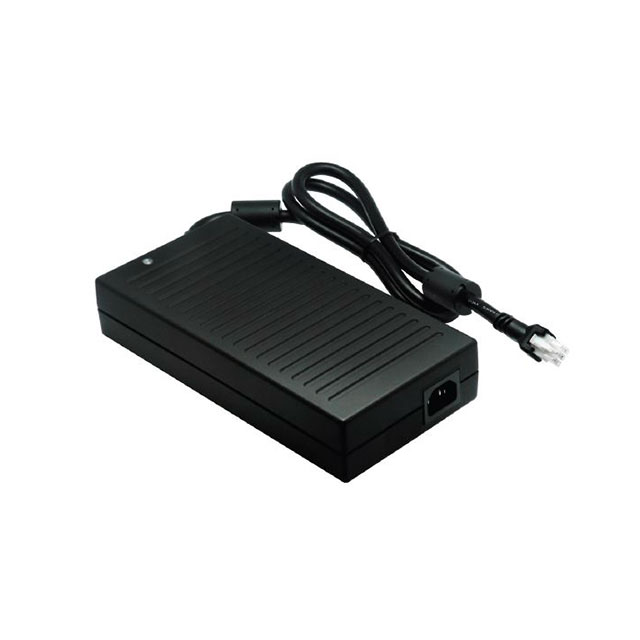

DTM300PW540D2
ActiveAC/DC POWER SUPPLY, MEDICAL, 1 OUTPUT, 300 W, 54 V, 5.56 A
Deep-Dive with AI
Search across all available documentation for this part.
DTM300PW540D2
ActiveAC/DC POWER SUPPLY, MEDICAL, 1 OUTPUT, 300 W, 54 V, 5.56 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM300PW540D2 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Cord Length | 0.8 m |
| Cord Length | 31.5 in |
| Current - Output (Max) [Max] | 5.56 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C18 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | 10 Pin |
| Output Connector | DIN |
| Power (Watts) | 300 W |
| Region Utilized | International |
| Size / Dimension [x] | 8.74 " |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [y] | 112 mm |
| Size / Dimension [y] | 4.41 " |
| Size / Dimension [z] | 1.77 in |
| Size / Dimension [z] | 45 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DTM300 Series
The DTM300PW540D2 from TDK Lambda is a DTM300-D series 300W medical/ITE certified class II external power supply. It is suitable for B & BF rated equipments. This power supply features auto recovery overvoltage protection, 105 to 150% hicc-up mode overload and short circuit protection. It is approved by EN60601-2, IEC60601-1-2 Ed4:2014, EN55011 class B, EN55022 class B, EN55024 class B, FCC part 15 class B, FCC part 18 class B, IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1, CE safety agency certifications and meets DOE level VI efficiency. The power supply also has 1.5KVAC input to ground, 4KVAC input to output (2xMoPP), 1.5KVAC output to ground (class I) and 4KVAC input to output (2xMoPP) (class II).
