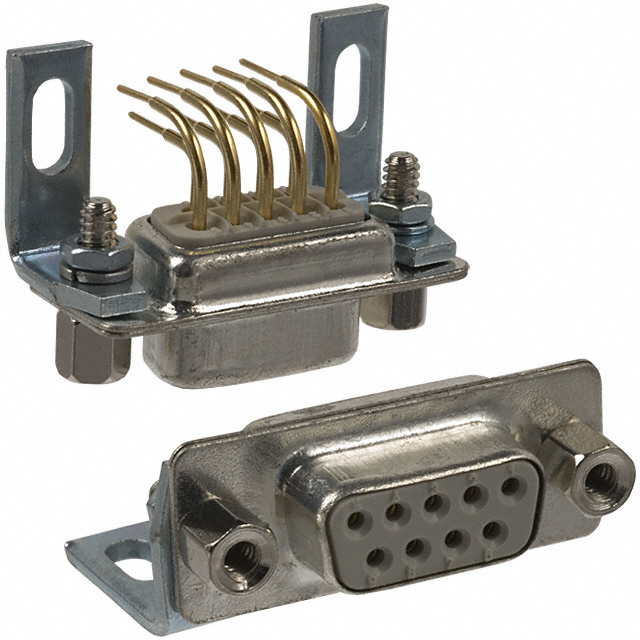

173-009-212R141

Obsolete

MH Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	173-009-212R141

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Current Rating (Amps)	Number of Positions	Mounting Type	Contact Finish Thickness	Features	Connector Style	Color	Material Flammability Rating	Contact Type	Backset Spacing	Backset Spacing	Connector Type	Termination	Contact Finish	Contact Material	Dielectric Material	Flange Feature	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
MH Connectors 173-009-212R141	5 A	9	Panel Mount Right Angle Through Hole	Flash	Mounting Brackets	D-Sub	Beige	UL94 V-0	Signal	0.283 in	7.2 mm	Receptacle Female Sockets	Solder	Gold	Brass	Polybutylene Terephthalate (PBT) Polyester	Female Screwlock (4-40) Mating Side	2	DE E	1
MH Connectors 173-009-112R141	5 A	9	Panel Mount Right Angle Through Hole	Flash	Grounding Indents Mounting Brackets	D-Sub	Beige	UL94 V-0	Signal	0.283 in	7.2 mm	Male Pins Plug	Solder	Gold		Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	2	DE E	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
