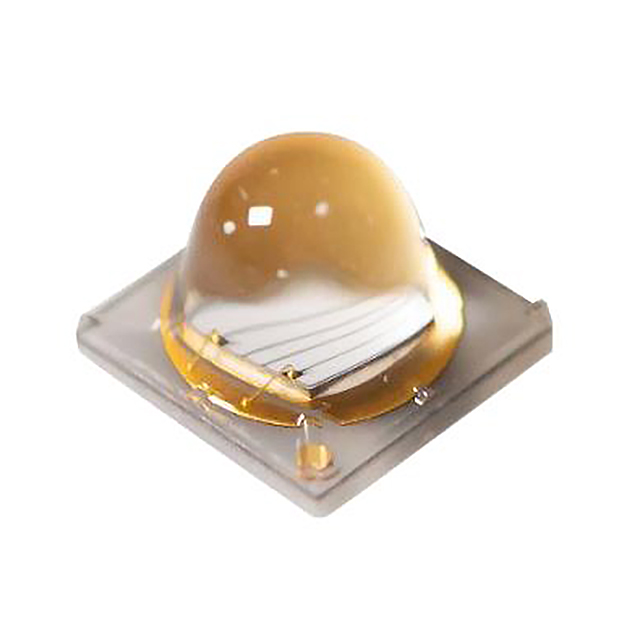

CUN96B1B
ActiveSETi/Seoul Viosys
395NM NZ5 PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUN96B1B
ActiveSETi/Seoul Viosys
395NM NZ5 PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUN96B1B |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 395 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.94 | |
| 10 | $ 5.76 | |||
| 100 | $ 4.76 | |||
| Digi-Reel® | 1 | $ 7.94 | ||
| 10 | $ 5.76 | |||
| 100 | $ 4.76 | |||
| Tape & Reel (TR) | 500 | $ 1.99 | ||
| 1000 | $ 2.35 | |||
| 1500 | $ 2.30 | |||
| 2500 | $ 2.24 | |||
| 3500 | $ 2.20 | |||
Description
General part information
CUN96B1 Series
Ultraviolet (UV) Emitter 395nm 3.5V 700mA 45° 1414 (3535 Metric)
Documents
Technical documentation and resources
