R191703000

Active

Radiall USA, Inc.

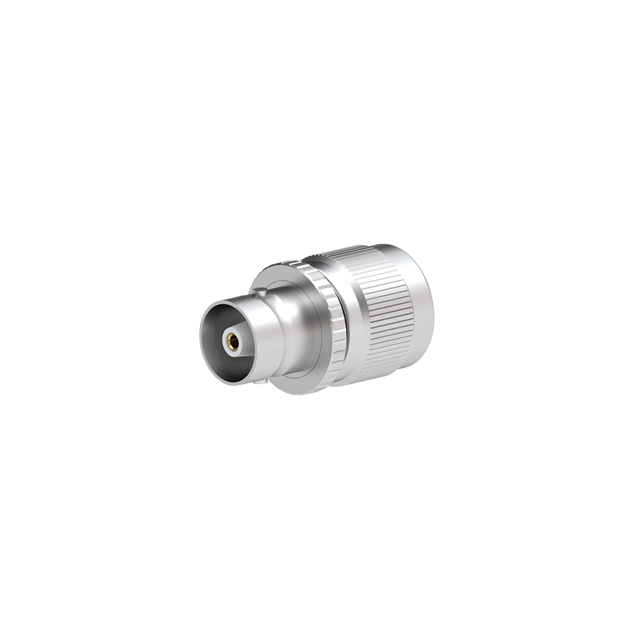

RF CONNECTOR ADAPTER, C-N, FEMALE-MALE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, C-N, FEMALE-MALE

Technical Specifications

Parameters and characteristics for this part

Specification	R191703000

Adapter Series	N to C
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Convert To (Adapter End)	Fastening Type	Convert From (Adapter End)	Body Finish	Mounting Type	Adapter Series	Conversion Type	Style	Impedance	Center Contact Plating	Adapter Type	Frequency - Max [Max]	Dielectric Material	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material
Radiall USA, Inc. R191705000	C Jack Male Pin	Bayonet Lock Threaded	Female Socket N Jack	Nickel	Free Hanging (In-Line)	N to C	Between Series	Straight	50 Ohms	Gold	Jack to Jack	11 GHz	Polytetrafluoroethylene (PTFE)	Brass	155 °C	-55 °C	Beryllium Copper
Radiall USA, Inc. R191703000		Bayonet Lock Threaded	N Plug Male Pin	Nickel	Free Hanging (In-Line)	N to C	Between Series	Straight	50 Ohms	Gold	Plug to Jack	11 GHz	Polytetrafluoroethylene (PTFE)	Brass	155 °C	-55 °C	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 233.61

General part information

Adapter Coaxial Connector N Plug, Male Pin To C Jack, Female Socket 50 Ohms
