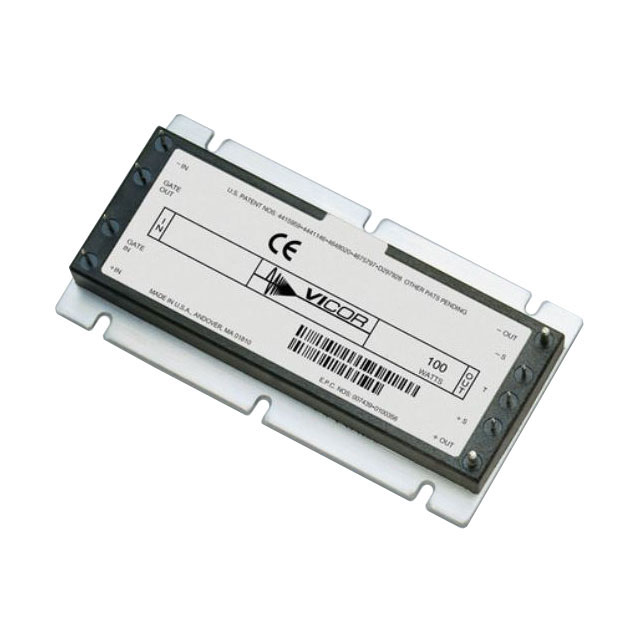

MI-220-IW-F2

Active

Vicor Corporation

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 100W, HYBRID, MODULE-9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MI-220-IW-F2

Active

Vicor Corporation

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 100W, HYBRID, MODULE-9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MI-220-IW-F2

Applications	ITE (Commercial)
Current - Output (Max) [Max]	20 A
Efficiency	90 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	100 W
Size / Dimension [x]	4.2 "
Size / Dimension [x]	106.7 mm
Size / Dimension [y]	61 mm
Size / Dimension [y]	2.4 "
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	50 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

MI-220 Series

Part	Features	Voltage - Output 1	Type	Efficiency	Voltage - Isolation	Number of Outputs	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]
Vicor Corporation MI-220-IX	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-40 °C	75 W	ITE (Commercial)	50 V	15 A	12.7 mm	61 mm	2.4 "	106.7 mm	4.2 "	0.5 in	18 V
Vicor Corporation MI-220-MW	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-55 °C	100 W	ITE (Commercial)	50 V	20 A	12.7 mm	61 mm	2.4 "	106.7 mm	4.2 "	0.5 in	18 V
Vicor Corporation MI-220-IW-F2	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-40 °C	100 W	ITE (Commercial)	50 V	20 A	25.4 mm	61 mm	2.4 "	106.7 mm	4.2 "	1 "	18 V
Vicor Corporation MI-220-MX	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-55 °C	75 W	ITE (Commercial)	50 V	15 A	12.7 mm	61 mm	2.4 "	106.7 mm	4.2 "	0.5 in	18 V
Vicor Corporation MI-220-MY	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-55 °C	50 W	ITE (Commercial)	50 V	10 A	12.7 mm	61 mm	2.4 "	106.7 mm	4.2 "	0.5 in	18 V
Vicor Corporation MI-220-IW	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-40 °C	100 W	ITE (Commercial)	50 V	20 A	12.7 mm	61 mm	2.4 "	106.7 mm	4.2 "	0.5 in	18 V
Vicor Corporation MI-220-IY-S	OCP OTP OVP Remote On/Off	5 V	Isolated Module	90 %	3000 V	1	Full Brick	Through Hole	85 °C	-40 °C	50 W	ITE (Commercial)	50 V	10 A	12.7 mm	45.7 mm	1.8 in	106.7 mm	4.2 "	0.5 in	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 734.94

Description

General part information

MI-220 Series

Isolated Module DC DC Converter 1 Output 5V 20A 18V - 50V Input
