915-1000

Active

Amphenol RF

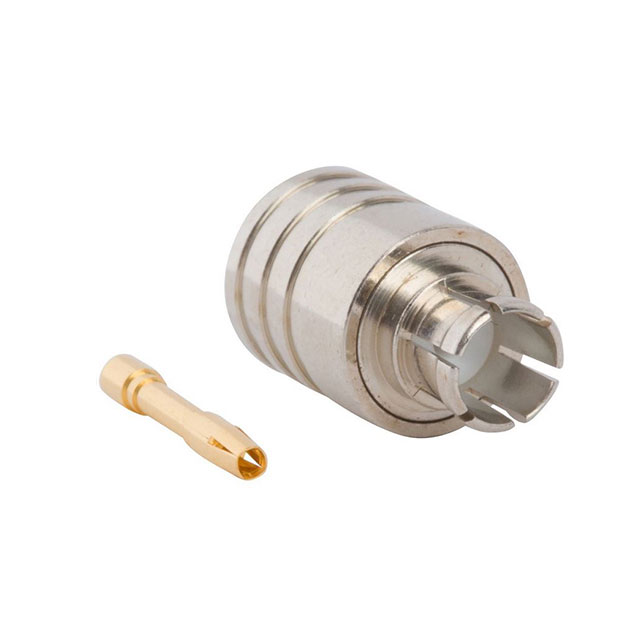

CONN PSMP PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN PSMP PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	915-1000

Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Insulator, Connector, Contact
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Connector Style	Body Finish	Center Contact Plating	Contact Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Impedance	Fastening Type	Body Material	Includes	Frequency - Max [Max]	Connector Type	Mounting Type	Center Contact Material	Voltage Rating	Number of Ports	Shield Termination	Cable Group
Amphenol RF 915-1000	PSMP	White Bronze	Gold	Solder	Silver	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Beryllium Copper	Connector Contact Insulator	2 GHz	Female Socket Plug	Free Hanging (In-Line)	Beryllium Copper	480 V	1	Solder
Amphenol RF 915-1006	PSMP	White Bronze	Gold	Solder	Silver	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Snap-On	Beryllium Copper	1 Connector 1 End Cap	2.4 GHz	Female Socket Plug	Free Hanging (In-Line) Right Angle	Beryllium Copper	480 V	1	Solder	RG-405 (.085" .086" .087" Semi Rigid .085" Conformable)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PSMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
