CL-1-2005-9910-I

Active

Visual Communications Company - VCC

LED INDICATOR, IP67 SEALED AND V

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

LED INDICATOR, IP67 SEALED AND V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Viewing Angle	Panel Cutout Shape	Current	Millicandela Rating [custom]	Millicandela Rating [custom]	Termination Style	Lens Color	Wavelength - Peak	Lamp Color	Ingress Protection	Lens Style	Ratings
Visual Communications Company - VCC CL-1-2005-9912-I	1.95 V 2.1 V	14.2 mm	0.56 "	LED	50 °	Round	20 mA 20 mA	130 mcd	750 mcd	Wire Leads - 6.000" (152.40mm)	Green Red	574 nm 645 nm	Green Red	IP67	Round with Domed Top
Visual Communications Company - VCC CL-1-2005-9907-I	1.95 V 2.1 V	14.2 mm	0.56 "	LED	50 °	Round	20 mA 20 mA	130 mcd	750 mcd	Wire Leads - 6.000" (152.40mm)	Green Red	574 nm 645 nm	Green Red	IP67	Round with Domed Top
Visual Communications Company - VCC CL-1-2005-9910-I	24 V 24 V	14 mm	0.551 in	LED	50 °	Round		130 mcd	750 mcd			574 nm 645 nm	Green Red	IP67	Round with Domed Top	DC
Visual Communications Company - VCC CL-1-2005-9908-I	12 V 12 V	14 mm	0.551 in	LED	50 °	Round		130 mcd	750 mcd			574 nm 645 nm	Green Red	IP67	Round with Domed Top	DC
Visual Communications Company - VCC CL-1-2005-9914-I	1.95 V 2.1 V	14.2 mm	0.56 "	LED	50 °	Round	20 mA 20 mA	130 mcd	750 mcd	Wire Leads - 6.000" (152.40mm)	Green Red	574 nm 645 nm	Green Red	IP67	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

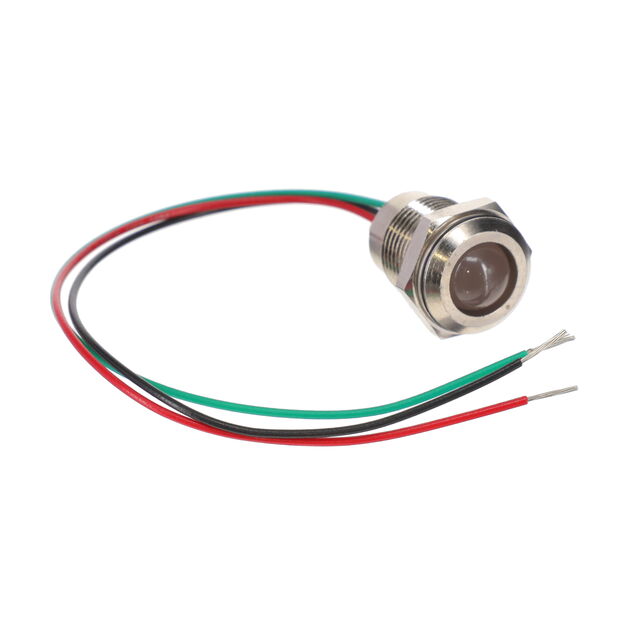

LED Panel Indicator Green, Red 50° 24V Green, 24V Red 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
