R317720000

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, SHV-SHV, PLUG-PLUG,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

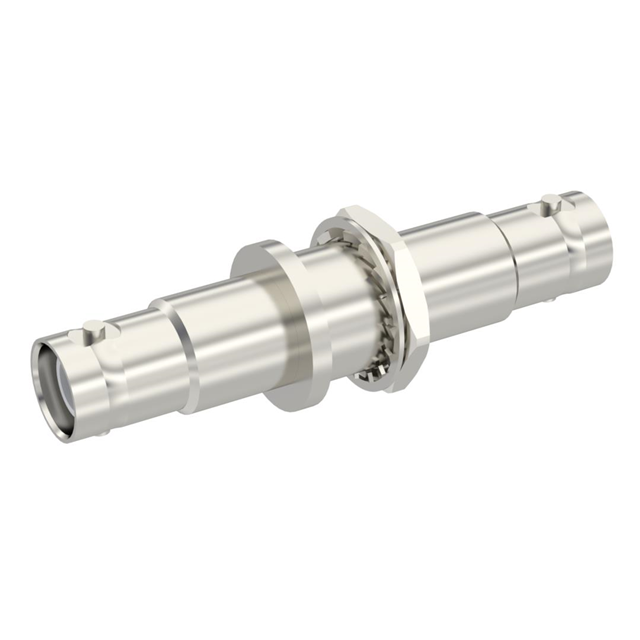

RF CONNECTOR ADAPTER, SHV-SHV, PLUG-PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	R317720000

Adapter Series	SHV to SHV
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SHV Jack, Male Pin
Convert To (Adapter End)	Male Pin, SHV Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Conversion Type	Body Material	Body Finish	Convert To (Adapter End)	Adapter Type	Center Gender	Mounting Feature	Frequency - Max [Max]	Center Contact Plating	Style	Adapter Series	Impedance	Center Contact Material	Mating Cycles	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Radiall USA, Inc. R317720000	Polytetrafluoroethylene (PTFE)	Same Series	Brass	Nickel	Male Pin SHV Jack	Jack to Jack	Male to Male	Bulkhead	2 GHz	Gold	Straight	SHV to SHV	50 Ohms	Beryllium Copper Brass	500	Male Pin SHV Jack	-65 ░C	165 °C	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SHV Jack, Male Pin To SHV Jack, Male Pin 50 Ohms
