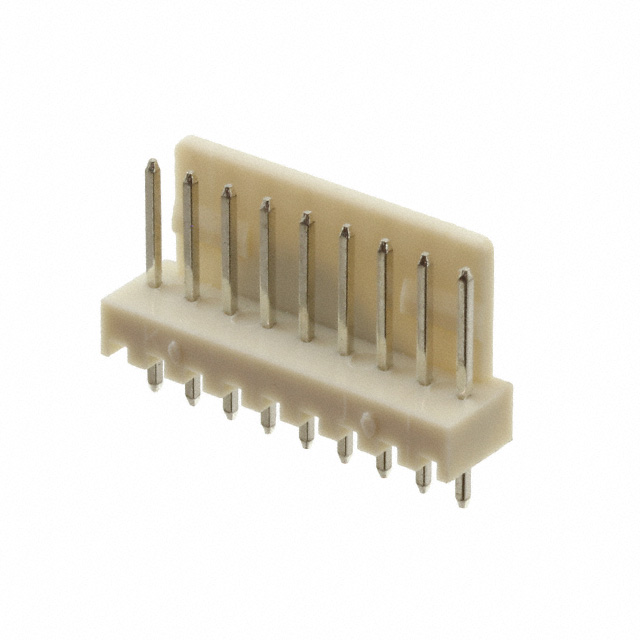

LHS-09-TS

Active

Adam Tech

CONN WIRE TO BOARD HDR 9 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Search across all available documentation for this part.

Active

Adam Tech

CONN WIRE TO BOARD HDR 9 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	LHS-09-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.299 in
Contact Length - Mating	7.6 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.327 "
Insulation Height	8.3 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Mounting Type	Overall Contact Length	Overall Contact Length	Number of Positions	Shrouding	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Termination	Contact Type	Voltage Rating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Number of Rows	Contact Finish - Post	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type
Adam Tech LHS-09-TS	Through Hole	14.2 mm	0.559 in	9	Shrouded - 1 Wall	White	All	3 A	Solder	Male Pin	250 VAC	UL94 V-0	0.299 in	7.6 mm	0.327 "	8.3 mm	0.1 in	2.54 mm	Board to Cable/Wire	0.134 in	3.4 mm	Square	1	Tin	Friction Lock	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Brass	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 9 position 0.100" (2.54mm)
